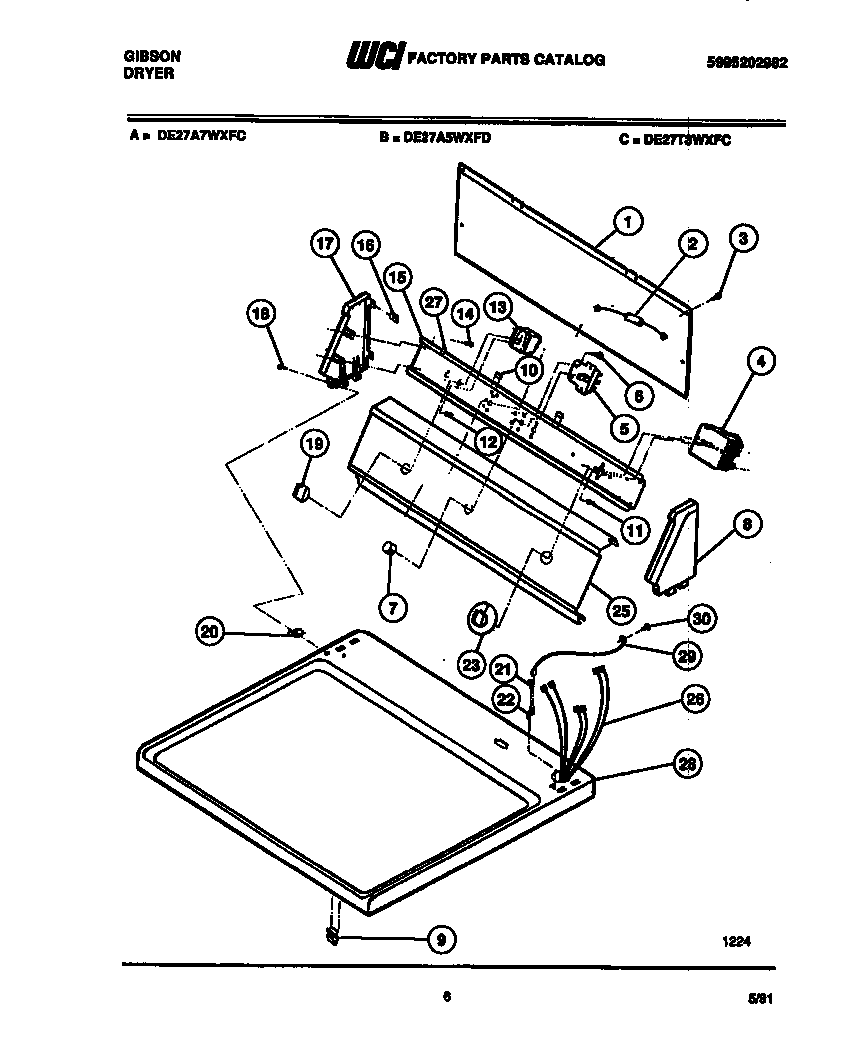

DE27A7WXFD 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
2	RESISTOR
4	WCI 5300630113
5	SWITCH - START
6	WCI 08001544
7	WCI 3201220
8	WCI 3205840
9	3205821 Frigidaire Clip
10	PAD (2)
11	218359202 Frigidaire Refrigerator Screw
12	WCI 3281101
13	WCI 5303281187
14	5303015671 Frigidaire Bracket Termination Screw
15	WCI 5303210137
16	CLIP (8)
17	WCI 3205842
18	SCREW (2)
19	WCI 5308015435
20	CLIP
21	131243800 Frigidaire Screw
22	WCI 5379171000
23	WCI 3205843
25	WCI 3206309
26	WCI 5303270867
26A	5303303590 Frigidaire Dryer 4.0" Cable Tie
27	WCI 3281200
28	PANEL-TOP-WHITE
28	PANEL TOP-ALMOND
29	WCI 3201308
30	SCREW (2)
