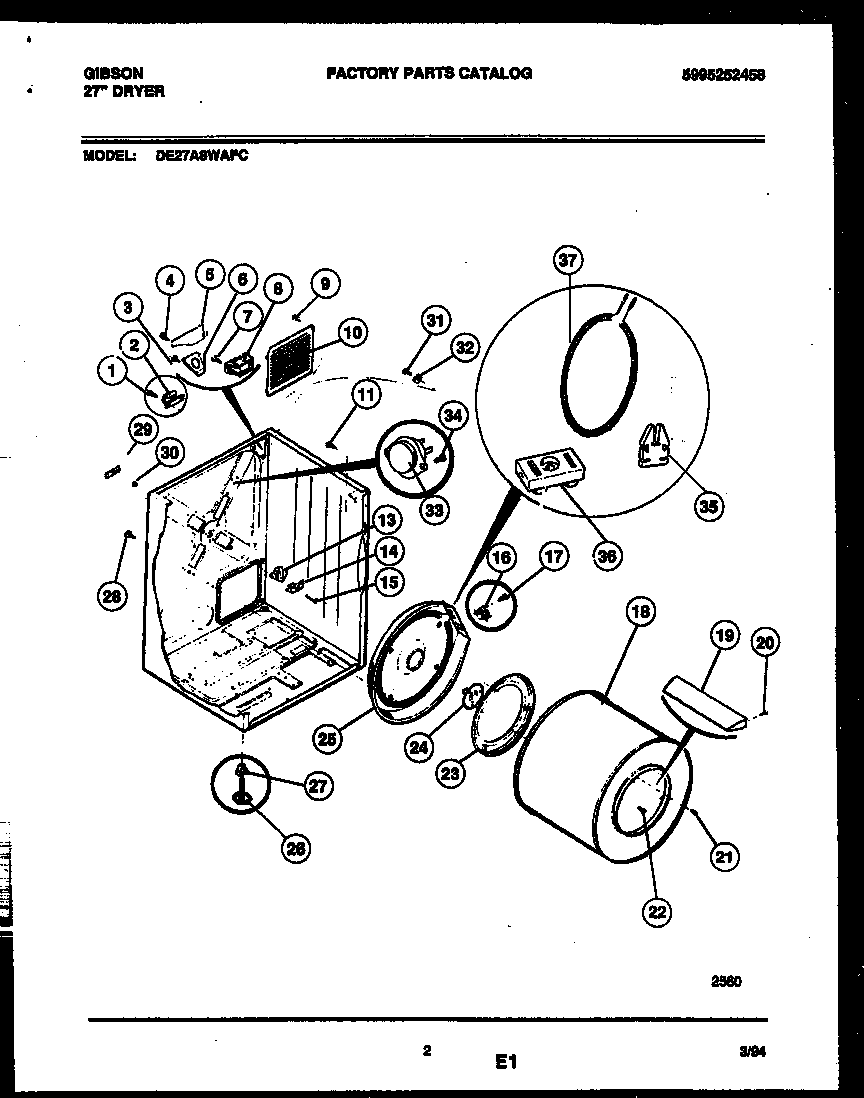

DE27A8WAFC 02 – CABINET AND COMPONENT PARTS

DE27A8WAFC 02 – CABINET AND COMPONENT PARTS

Written by

in

DE27A8WAFC 02 – CABINET AND COMPONENT PARTS

Products

PositionProduct
*71287WCI 5303281153]
*71288CLIP-CAB. FRONT BTM
*71288DRYING RACK-OPTIONAL
1WCI 08011338
2WCI 3281175
45303015671 Frigidaire Bracket Termination Screw
5WCI 5303211428
6WCI 3281040
7WCI 5308015309
8134101400 Frigidaire Dryer Kit Terminal Block
10PLATE-COVER
13131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14131724301 Frigidaire Dryer Drum Bearing Bracket
15131205400 Frigidaire Screw
16WCI 5303281113
17SCREW
18WCI 3201199
19137552900 Frigidaire Vane
20131382300 Frigidaire Screw-VANE
21WCI 5303207393
22SCREW (3) (PART OF REAR BEARING KIT.)
233204254 Frigidaire Baffle Assembly
245303931781 Frigidaire Shaft
25HEATER ASSY W/HSNG
26BOLT-FOOT (4)
27WCI 3201202
28WCI 5303010202
295303281020 Frigidaire Ball Clip
305303281019 Frigidaire Ball Assembly
31134154100 Frigidaire Screw 10-32 x 0.375 Co
32WASHER
33134120900 Frigidaire Dryer Limiter Thermal
34WCI 08010804
35131472100 Frigidaire Dryer Insulator Heater Coil
363202786 Frigidaire Terminal Block
37LARGE DIA COIL 5/16" TERM
