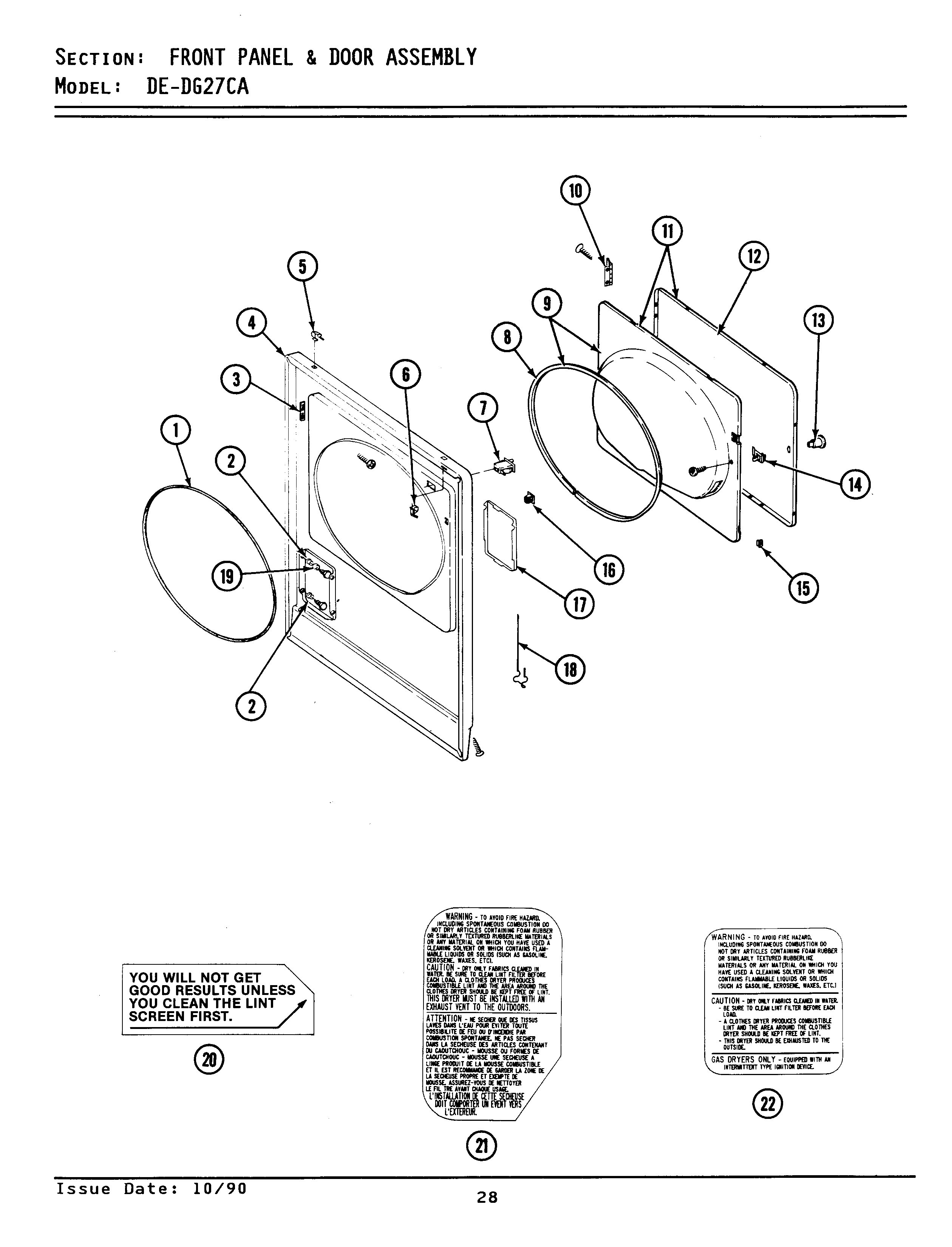

DE27CA 05 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
001MAY 314937
003MAY Y313907
004SCREW & FSTNER ASSY (FT. PNL)
005MAY 212982
006MAY Y310376
007W10169313 Whirlpool Door Switch Kit
008MAY 314935
009MAY Y308070
011MAY 308062
014MAY 314944
014MAY 314936
015CLIP, DOOR LINER
016306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
018LATCH, ACCESS DOOR
019SLEEVE, ACCESS DOOR RUBBER
020LABEL, LINT SCREEN INSTR.
021MAY 314941
022DOWEL PIN FOR HANDLE
