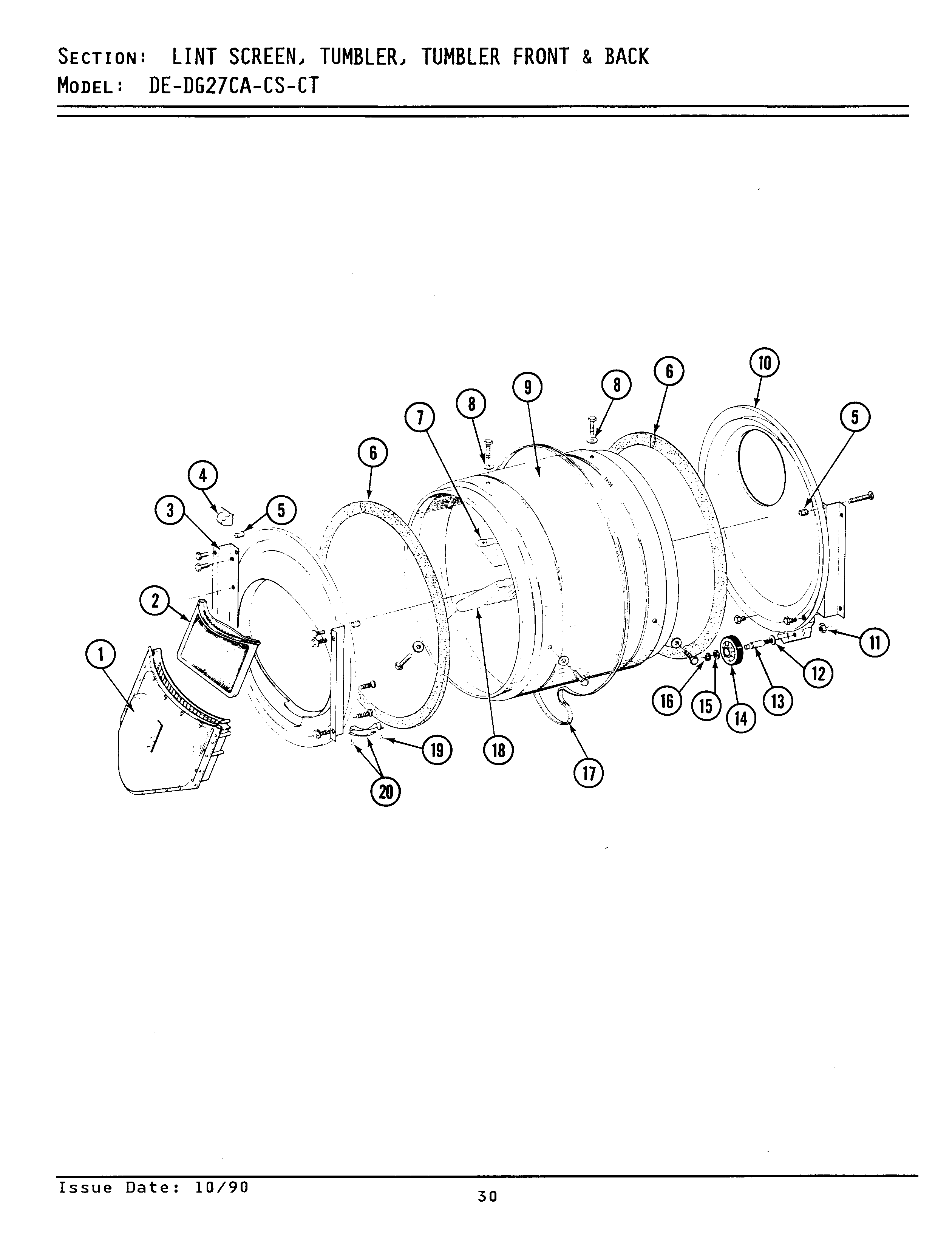

DE27CS 02 – LINT SCREEN, TUMBLER (FRONT & BACK)

DE27CS 02 – LINT SCREEN, TUMBLER (FRONT & BACK)

Written by

in

DE27CS 02 – LINT SCREEN, TUMBLER (FRONT & BACK)

Products

PositionProduct
001SCREW, INLET DUCT —-S
001MAY Y307112
002SCREEN, LINT
003MAY 307109
003MAY Y310632
003MAY Y313561
004MAY Y310376
005DOWEL PIN FOR HANDLE
006WP314820 Whirlpool Felt Seal
007MAY 314803
008MAY 314158
009MAY 314802
009MAY 306663
010MAY Y307114
010WP90767 Whirlpool Screw
011MAY 312538
013WP6-3129480 Whirlpool Roller Shaft
014MAY Y303373
015WP312535 Whirlpool Washer
016WP9703438 Whirlpool Snap Retaining Ring
017WPY312959 Whirlpool Dryer Drum Belt
01833001004 Whirlpool Baffle
018MAY Y310759
019WP210720 Whirlpool Rivet
020306508 Whirlpool Dryer Front Glide Kit
