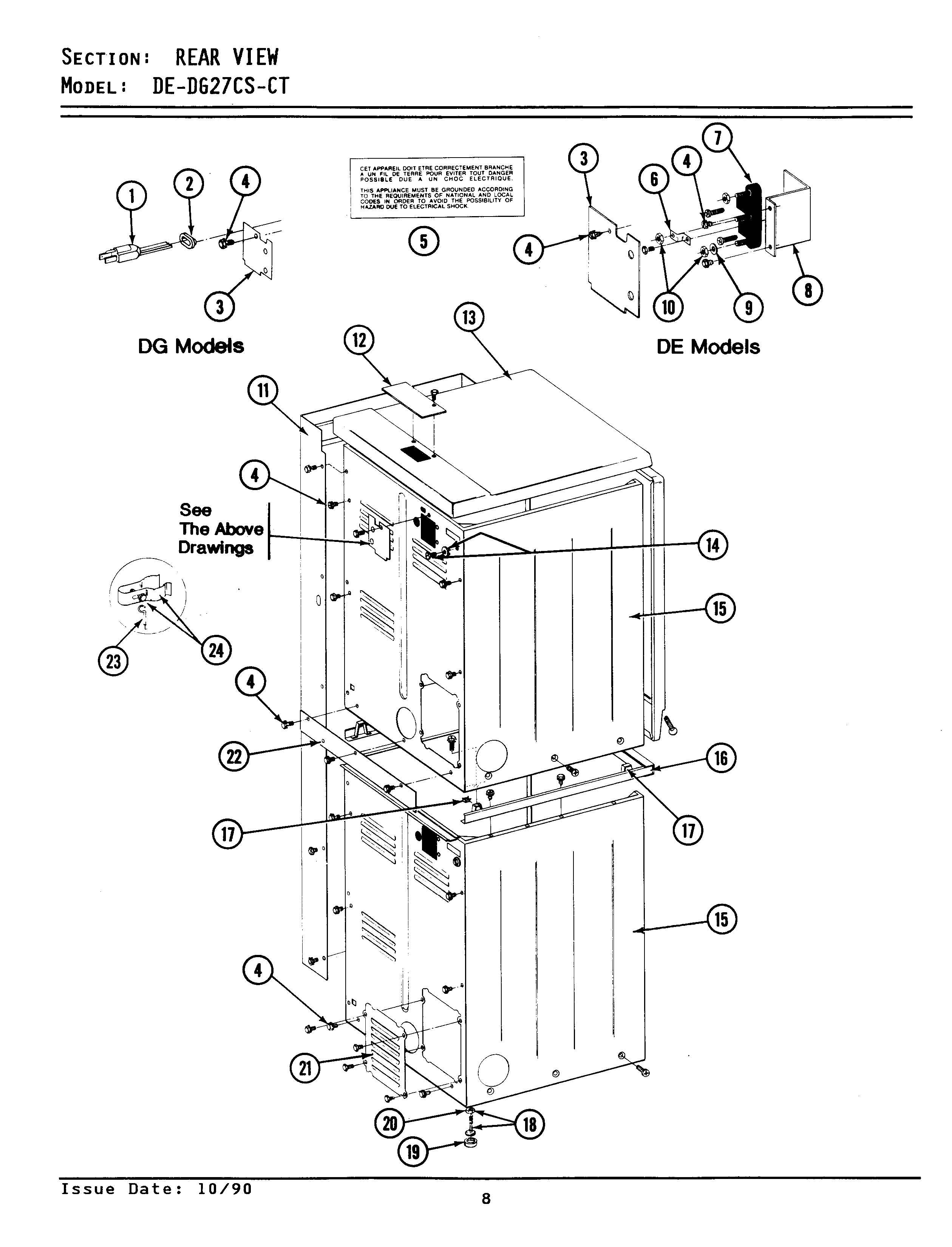

DE27CS 08 – REAR VIEW

Products

Position	Product
001	MAY 302521
002	GROMMET
003	MAY Y312905
004	MAY Y313561
005	INSTRUCTION LABEL
006	PART NOT USED
006	PART NOT USED
007	SCREW, No.10-24 X 3/4 INCH—–O
007	PART NOT USED
008	PART NOT USED
009	WPY311270 Whirlpool Washer TE
010	WP112432 Whirlpool Nut Assembly
013	TOP COVER ASSY. (WHT)
015	MAY 307125
015	213007 Whirlpool Screw #12
016	MAY 911050
017	MAY 310933
018	LEG, ADJUSTABLE (W/NUT)—S
019	WP210684 Whirlpool Dishwasher Leveling Leg Pad
020	WP210385 Whirlpool Lock Nut
021	MAY Y313559
021	MAY Y312951
021	WP90767 Whirlpool Screw
022	MAY Y310632
022	DOWEL PIN FOR HANDLE
023	WP311155 Whirlpool Wire Assembly
024	MAY 301548
024	MAY 313122
