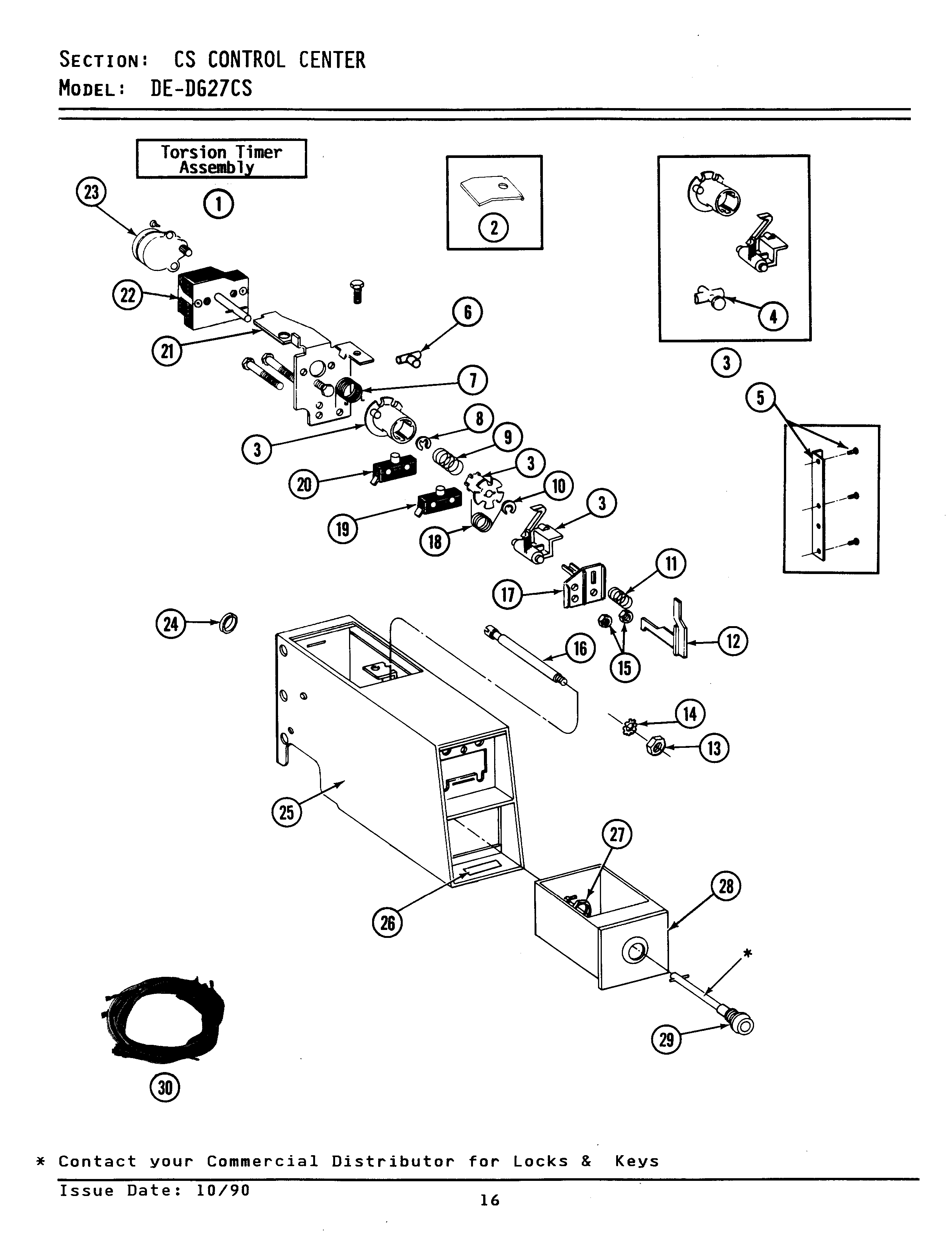

DE27CS 10 – CONTROL CENTER
Written by
in
DE27CS 10 – CONTROL CENTER
Products
| Position | Product |
|---|---|
| 001 | MAY 305797 |
| 003 | MAY 314330 |
| 003 | MAY 306104 |
| 004 | MAY 314547 |
| 005 | MAY Y014872 |
| 006 | TIME ADJUSTMENT PEG |
| 008 | MAY Y312270 |
| 009 | WP211065 Whirlpool Timer Spring |
| 012 | 33002968 Whirlpool Slider |
| 013 | Y052721 Whirlpool Nut |
| 014 | MAY 910387 |
| 015 | MAY Y052634 |
| 016 | MAY 215559 |
| 017 | MAY 314339 |
| 018 | MAY 314332 |
| 019 | MAY 305798 |
| 020 | MAY Y305799 |
| 021 | TIMER MOUNTING BRACKET |
| 021 | MAY 315277 |
| 021 | MAY 910708 |
| 022 | MAY 305813 |
| 022 | MAY 305800 |
| 022 | MAY 305796 |
| 023 | TIMER MOTOR RPR |
| 024 | MAY Y313671 |
| 025 | MAY Y307081 |
| 026 | MAY Y313439 |
| 027 | W11395752 Whirlpool Nut |
| 028 | MAY 205423M |
| 028 | COIN BOX-ALMOND |
| 028 | COIN BOX-WHITE |
| 030 | DOWEL PIN FOR HANDLE |
