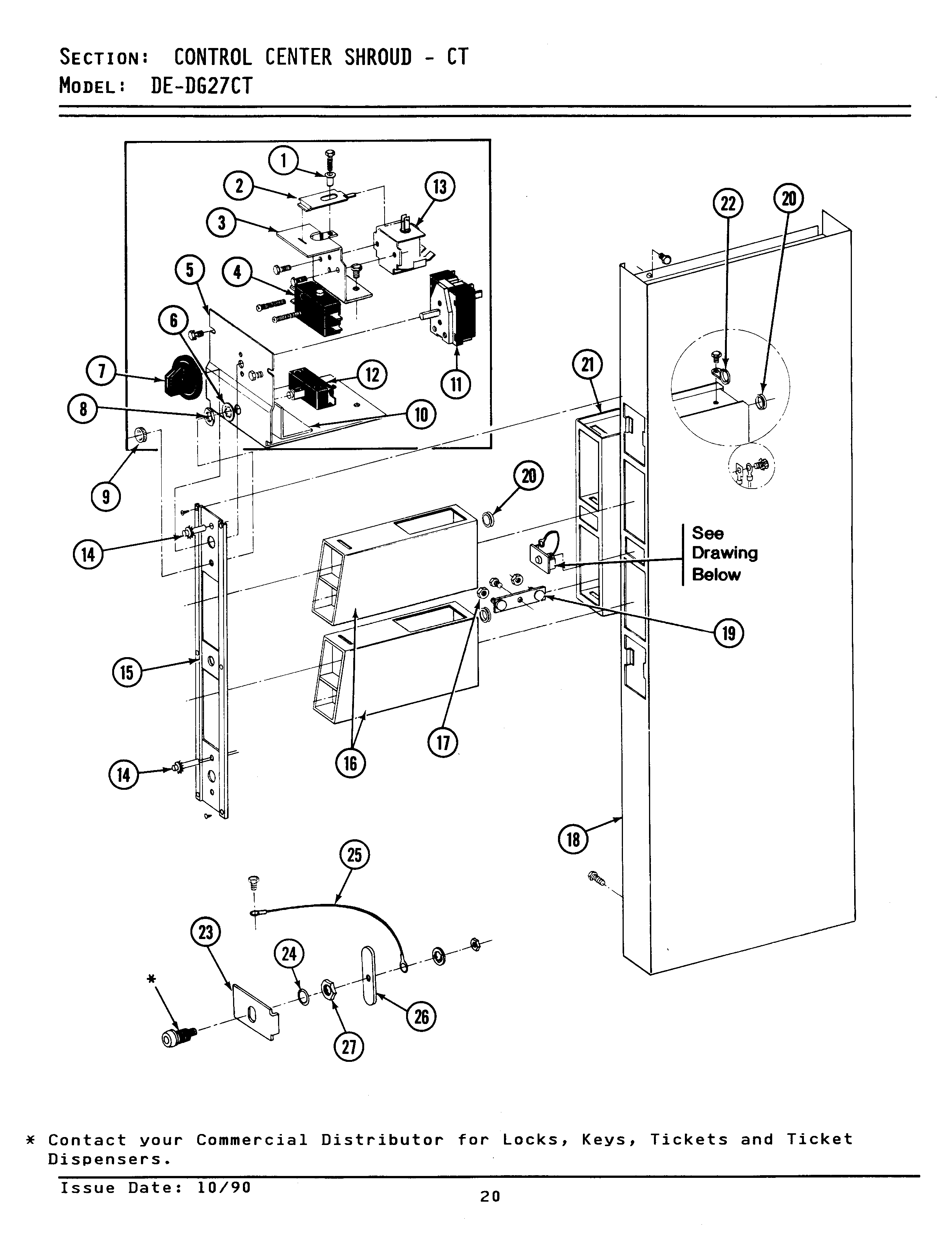

DE27CT 09 – CONTROL CENTER SHROUD

Products

Position	Product
003	SCREW, BUSHINGS
004	MAY 212950
004	MAY Y303787
005	MAY Y314261
006	WPW10139799 Whirlpool Washer
007	MAY 205663
008	MAY Y312706
009	MAY Y312702
011	WP488234 Whirlpool Air Conditioner Screw
011	MAY 307253
012	WPW10149462 Whirlpool Push-to-Start Switch
013	MAY 305393
013	MAY 212951
014	INDICATOR LIGHT
015	MAY 315037
015	MAY Y313424
017	WP62739 Whirlpool Nut
018	WP98165 Whirlpool Screw
019	MAY 212276
020	MAY Y313671
021	MAY 305534
021	MAY Y313559
021	MAY Y310632
021	WP90767 Whirlpool Screw
022	CABLE STRAP-HARNESS TO BASE
024	DOWEL PIN FOR HANDLE
025	MAY Y303981
025	WPW10139210 Whirlpool Screw
026	MAY Y313427
027	W11395752 Whirlpool Nut
