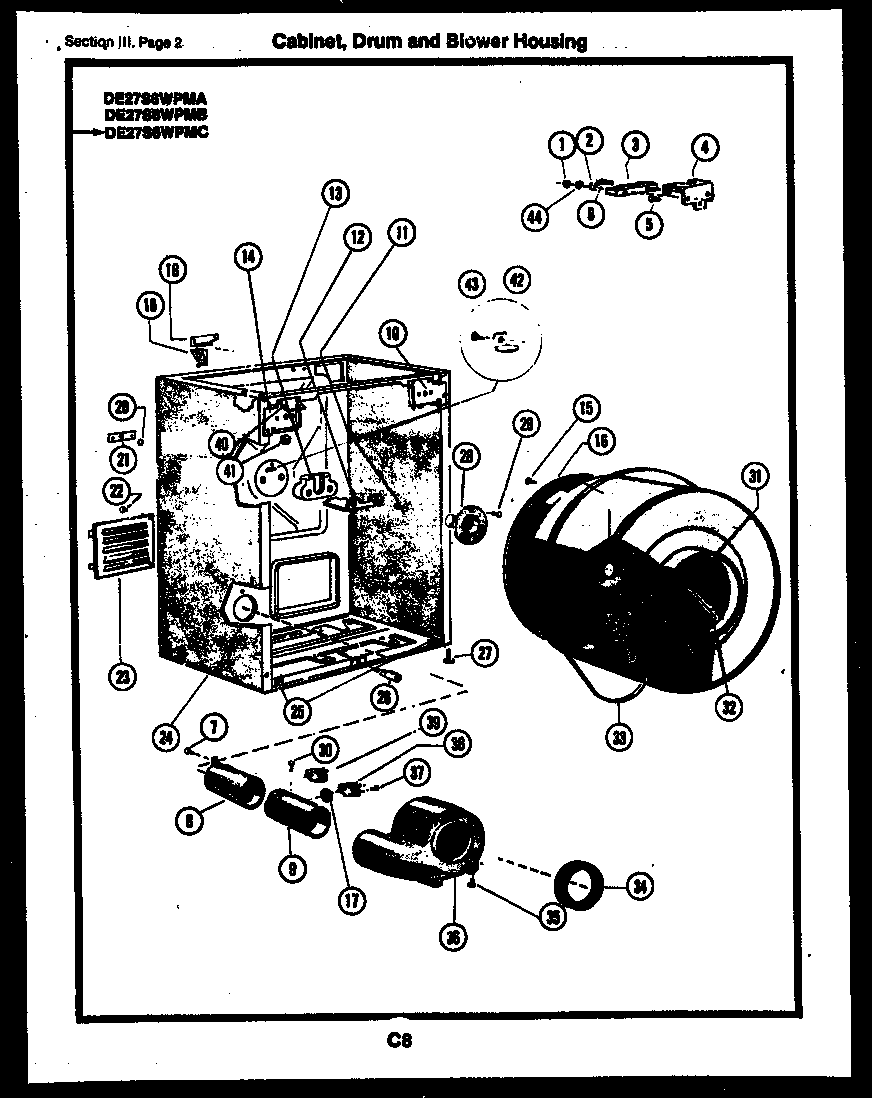

DE27S6WPMC 01 – CABINET, DRUM AND BLOWER HOUSING

Products

Position	Product
*72697	WCI 8GD1004B
1	NUT (2)
2	WCI WQ405401
3	5304409888 Frigidaire Oven Terminal Block with Hardware
4	WCI WQ133288
5	WCI WQ409702
6	WCI WQ435152
8	WCI WQ182901
9	WCI WQ603012
10	WCI WQ630223
11	131205400 Frigidaire Screw
12	131724301 Frigidaire Dryer Drum Bearing Bracket
13	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14	WCI WQ630225
15	SCREW (3)
16	3204254 Frigidaire Baffle Assembly
17	WCI WQ606131
18	WCI WQ133281
19A	SCREW
19	WCI WQ133283
20	5303281019 Frigidaire Ball Assembly
21	5303281020 Frigidaire Ball Clip
23	WCI WQ94811
24	WCI WQ604189
25	SPEED NUT
26	TOGGLE NUT
27	KIT – FOOT BOLT
28	5303931781 Frigidaire Shaft
29	SCREW
30	SCREW-BOT PAN (4)
31	SPINNER BSKT
32A	WCI WQ615893
32B	SCREW (9) (NON-ILLUSTRATED)
32	WCI WQ615894
33	5303281154 Frigidaire Dryer Belt (Flat Style)
34	134417000 Frigidaire Seal
35	WCI WQ416306
36	FAN HOUSING
37	SCREW
38	THERMOSTAT – REGULAR HEAT (NON-ILLUSTRATED)
39	THERMOSTAT – LOW HEAT (NON-ILLUSTRATED)
40	WCI WQ19341
41	WCI WQ504094
42	WCI WQ94710
43	WCI WQ505564
44	5300809968 Frigidaire Dishwasher P-1 Washer
45	5303300265 Frigidaire Oven Screw
