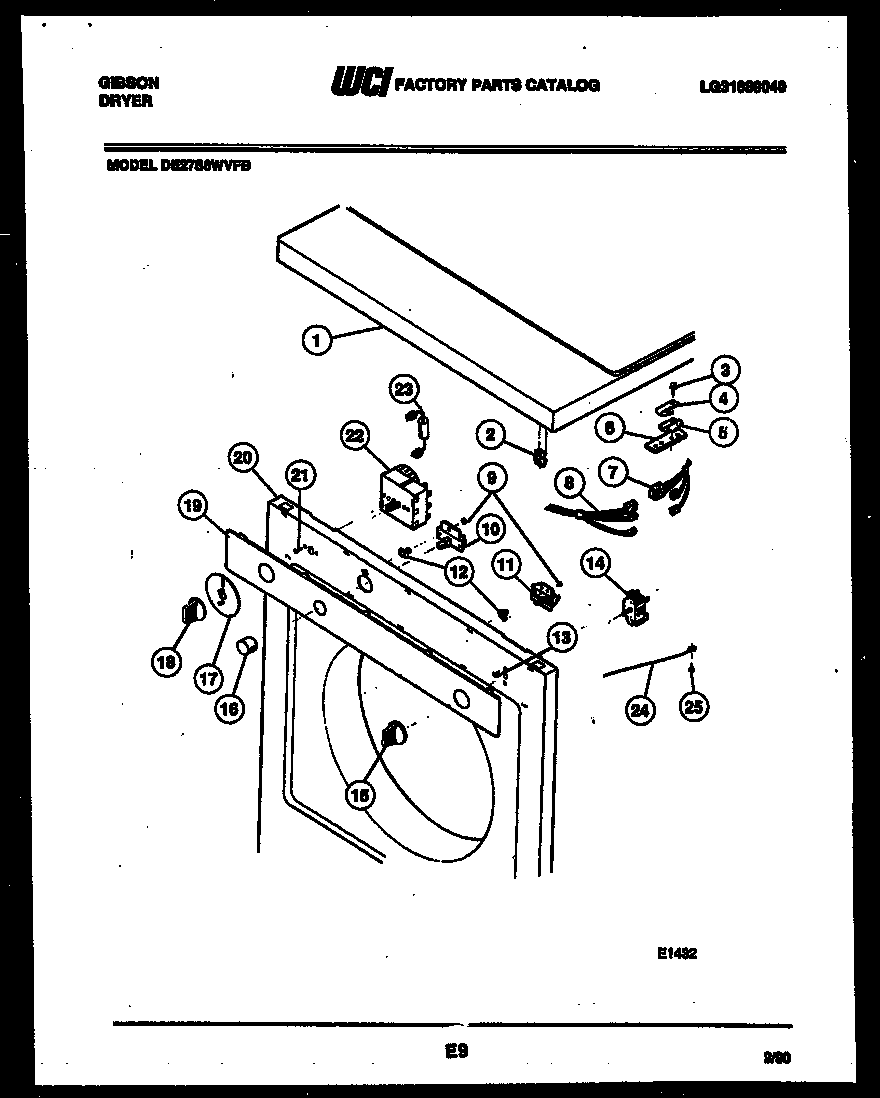

DE27S6WVFB 04 – TOP, CONTROL AND MISCELLANEOUS PART

Products

PositionProduct
1WCI 3203244
1WCI 3203243
2SPRING CATCH
3SCREW
4WCI 3281163
5WCI 3281164
6WCI 3281165
7WCI 3205663
7A5303303590 Frigidaire Dryer 4.0" Cable Tie
8WCI 3203444
9WCI 3281089
10WCI 3203445
11CONTROL
12WCI 3281092
13WCI 3281101
14WCI 3281100
15WCI 3203249
16WCI 3201220
17WCI 08027433
18KNOB-TIMER
19WCI 3203250
20WCI 3206228
20WCI 3206227
21SCREW (2)
22WCI 3010440
22AWCI 3281021
22BFASTENER
23RESISTOR
24WIRE-GROUND
25SCREW (2)
