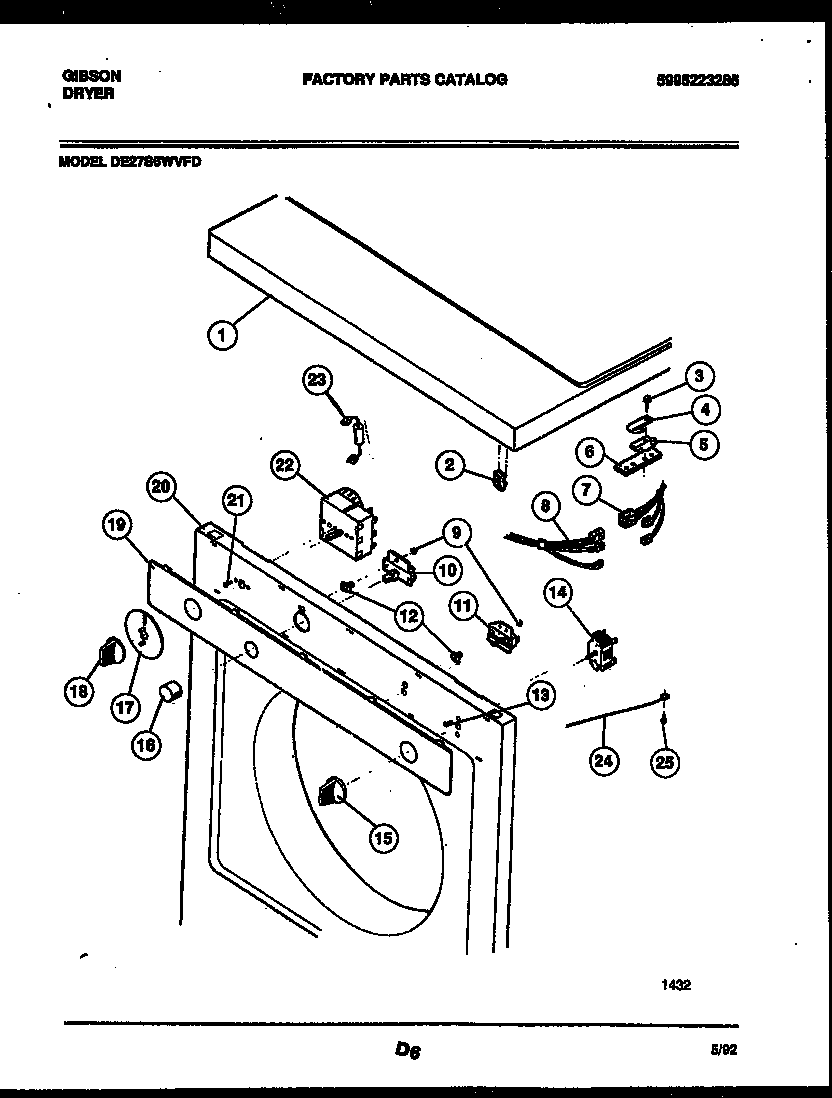

DE27S6WVFD 04 – TOP, CONTROL AND MISCELLANEOUS PART

DE27S6WVFD 04 – TOP, CONTROL AND MISCELLANEOUS PART

Written by

in

DE27S6WVFD 04 – TOP, CONTROL AND MISCELLANEOUS PART

Products

PositionProduct
1WCI 3203243
1WCI 3203244
2SPRING CATCH
3SCREW
4WCI 3281163
5WCI 3281164
6WCI 3281165
7A5303303590 Frigidaire Dryer 4.0" Cable Tie
7WCI 5303269967
8WCI 5303270879
9WCI 3281089
10WCI 3203445
11WCI 5308004087
12WCI 3281092
13WCI 3281101
14WCI 3281100
15WCI 3203249
16WCI 3201220
17WCI 08027433
18KNOB-TIMER
19WCI 3203250
20WCI 5303283903
20WCI 5303283904
21SCREW (2)
22WCI 3010440
22AWCI 3281021
22BFASTENER
23RESISTOR
24WIRE-GROUND
25316008401 Frigidaire Washer P-1
25WCI 3281171
25WCI 3203253
25SCREW (2)
25WCI 3281173
