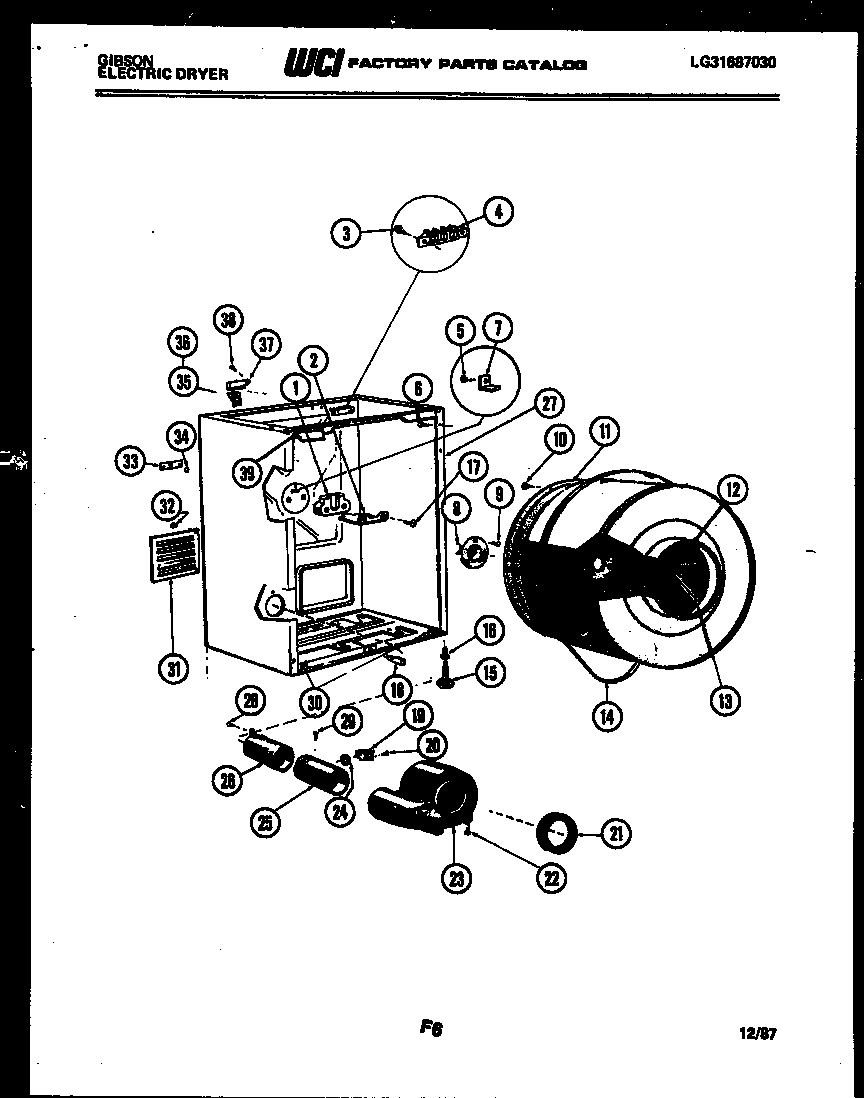

DE27S6YTMA 02 – CABINET, DRUM AND BLOWER HOUSING

Products

PositionProduct
*52590FASTENER
1AWCI 5303281153]
1131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
2131724301 Frigidaire Dryer Drum Bearing Bracket
3WCI WQ435152
4134101400 Frigidaire Dryer Kit Terminal Block
7WCI WQ94710
85303931781 Frigidaire Shaft
9SCREW
10SCREW (3)
113204254 Frigidaire Baffle Assembly
12SPINNER BSKT
13V ANE-FRONT (2)
13AVANE-REAR (1) (NON-ILLUSTRATED)
13BSCREW (9) (NON-ILLUSTRATED)
145303281154 Frigidaire Dryer Belt (Flat Style)
15WCI WQ504971
16GROMM. (FT BOLT)
17131205400 Frigidaire Screw
18TOGGLE KIT
19WCI WQ634401
21134417000 Frigidaire Seal
22WCI WQ416306
23FAN HOUSING
24WCI WQ606131
25DUCT, THERMO
26WCI WQ182901
27WCI WQ622925
27WCI WQ622924
27BODY – WHEAT
27WCI WQ622921
28WCI WQ505564
30WCI WQ505011
31WCI WQ94811
32SCREW-BOT PAN (4)
335303281020 Frigidaire Ball Clip
345303281019 Frigidaire Ball Assembly
35WCI WQ133283
36ASCREW
37WCI WQ167096
38WCI WQ403102
39WCI WQ623021
