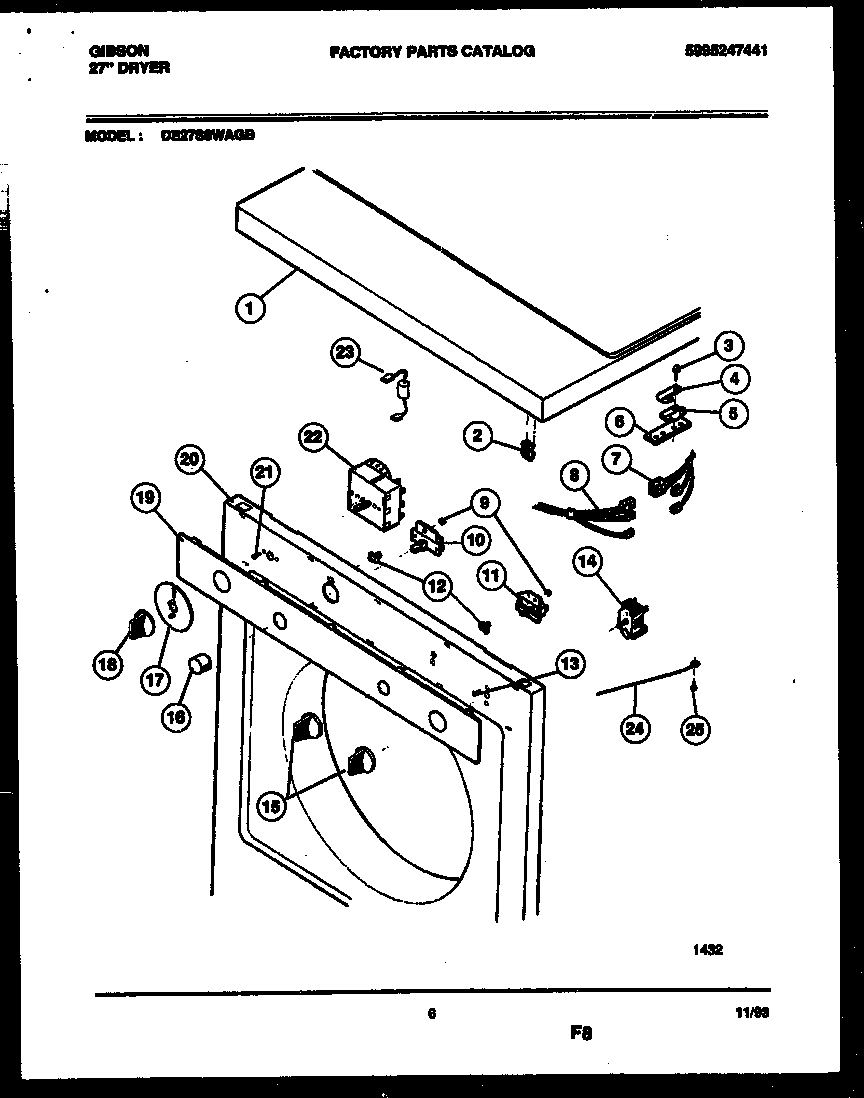

DE27S8WAGB 04 – TOP, CONTROL AND MISCELLANEOUS PART

Products

PositionProduct
1TOP PANEL-WHITE
1TOP PANEL-ALMOND
2WCI 5303281170
3WCI 3161175
4WCI 5303281163
5WCI 5303281164
6WCI 5303281165
7WCI 131159100
8WCI 131012200
9WCI 3281089
10START SWITCH
11WCI 5300632404
12WCI 3281092
13WCI 3281101
14SELECTOR SWITCH
15WCI 5300633724
16WCI 3201220
17WCI 5308027433
18WCI 5303291854
19WCI 131049600
20FRONT PANEL-ALMOND
20WCI 131003409
21WCI 5303281096
22WCI 5303010440
23RESISTOR
24WIRE-GROUND
25SCREW
