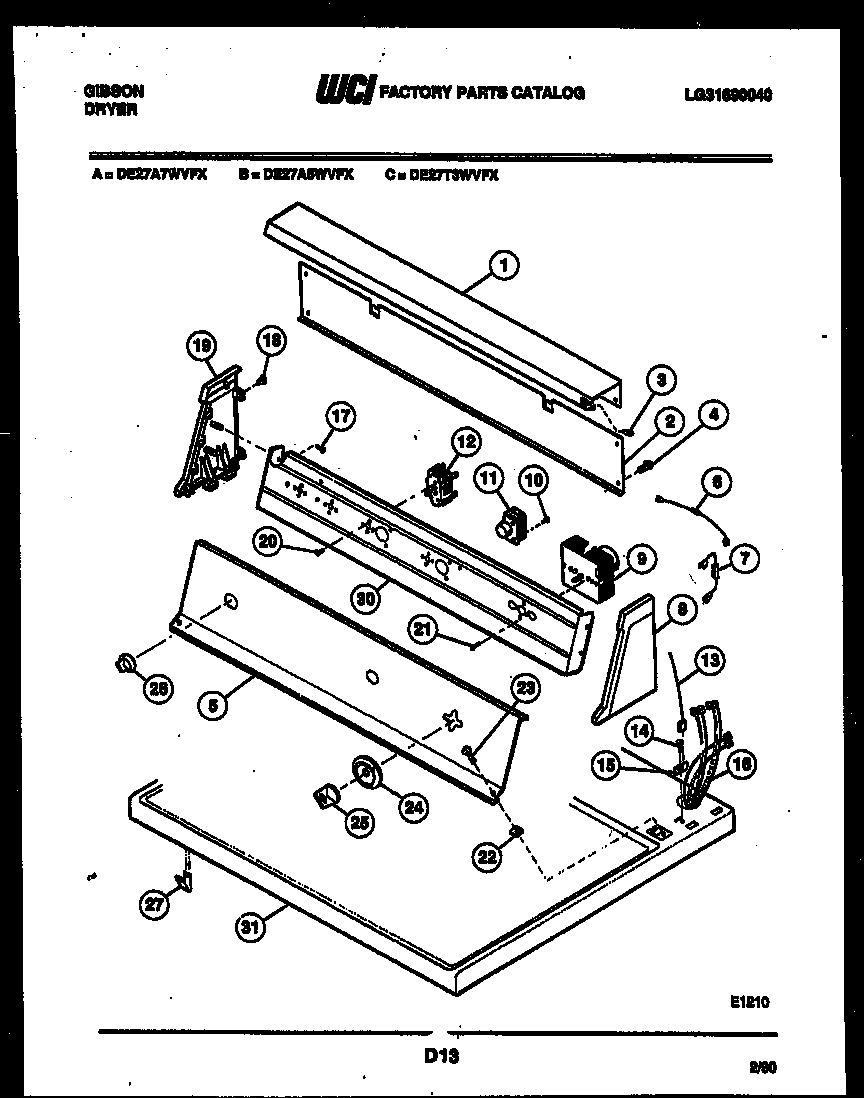

DE27T3WVFX 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201681
2	WCI 3201349
3	WCI 08010825
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI 5303209164
8	END CAP & TRM ASSY RH
9	WCI 3201614
10	WCI 08010804
11	WCI 01132293
13	WCI 3201385
14	131243800 Frigidaire Screw
15	WCI 3161198
16A	5303303590 Frigidaire Dryer 4.0" Cable Tie
16	WCI 3205982
17	WCI F137858-00
18	WCI F139577-000
19	WCI 5303209166
21	SCREW (2)
22	CLIP
23	WCI 3205820
24	WCI 08015702
25	KNOB TIMER
27	3205821 Frigidaire Clip
30	WCI 3205822
31	PANEL TOP-WHITE
31	PANEL-TOP ALMD
