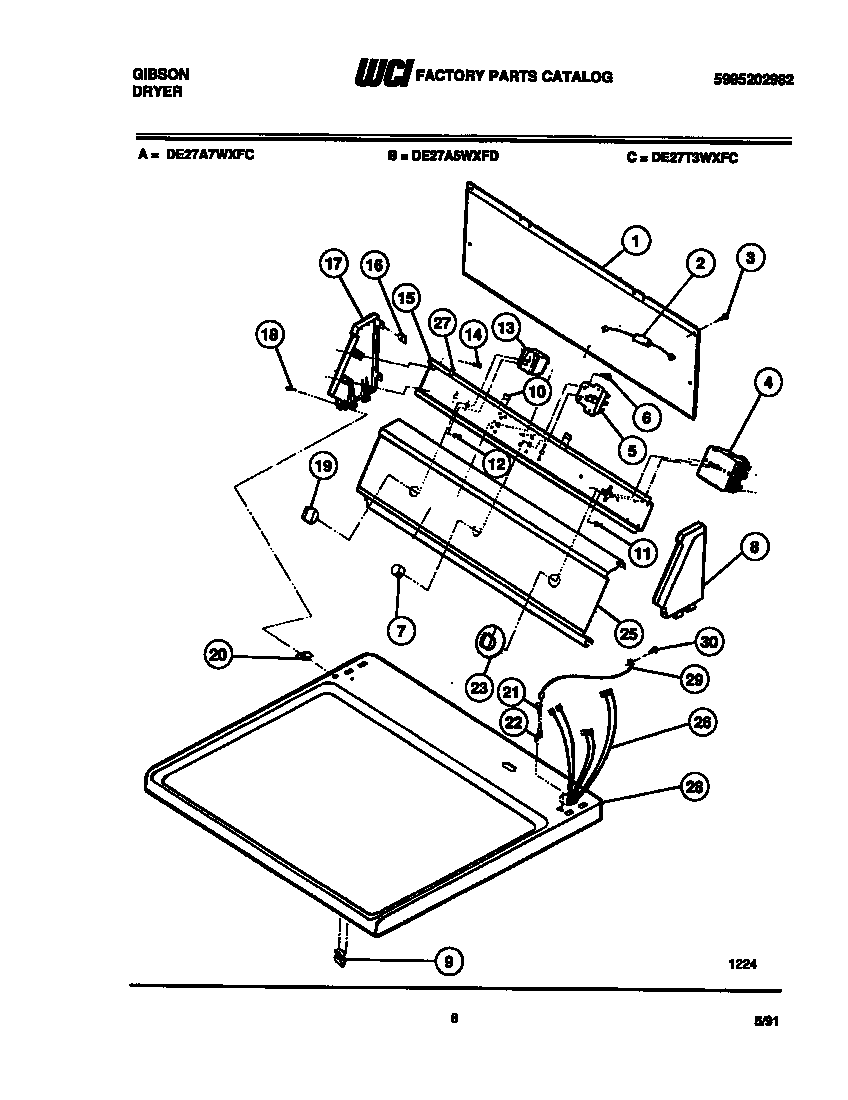

DE27T3WXFC 03 – CONSOL AND CONTROL PARTS

DE27T3WXFC 03 – CONSOL AND CONTROL PARTS

Written by

in

DE27T3WXFC 03 – CONSOL AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
4WCI 5300634422
5SWITCH – START
6WCI 08001544
7WCI 3201220
8WCI 3205840
93205821 Frigidaire Clip
10PAD (2)
11SCREW (2)
145303015671 Frigidaire Bracket Termination Screw
15WCI 5303210137
16CLIP (8)
17WCI 3205842
18SCREW (2)
20CLIP
21131243800 Frigidaire Screw
22WCI 5379171000
23WCI 3205843
25WCI 3205844
265303303590 Frigidaire Dryer 4.0" Cable Tie
26WCI 5303270870
27WCI 3281200
28PANEL-TOP-WHITE
28PANEL TOP-ALMOND
29WCI 3201308
30SCREW (2)
