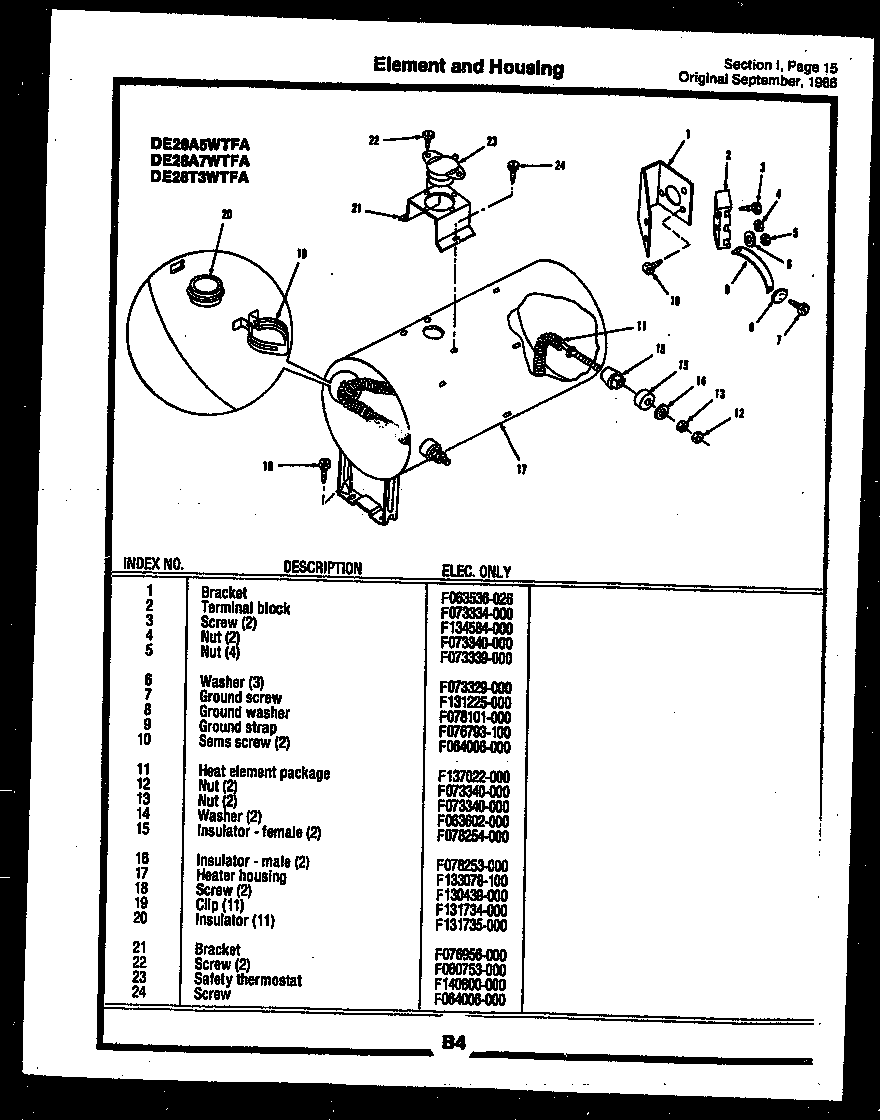

DE28A5WTFA 08 – ELEMENT AND HOUSING

Products

Position	Product
1	WCI F063536-026
2	5304409888 Frigidaire Oven Terminal Block with Hardware
3	SCREW (6)
5	NUT (4)
6	WCI F073329-000
7	134154100 Frigidaire Screw 10-32 x 0.375 Co
8	WCI F078101-000
9	WCI F076793-100
11	HEAT ELEMENT PKG (PACKAGE CONTAINS ELEMENT, INSULATORS,
13	NUT (2)
14	WASHER (2)
15	INSULATOR, FEMALE (2)
16	INSULATOR, MALE (2)
17	HTR. HOUSING
18	WCI F130439-000
19	CLIP (11)
20	WCI F131735-000
21	WCI F076956-000
22	5303015671 Frigidaire Bracket Termination Screw
23	THERMO-SAFETY
