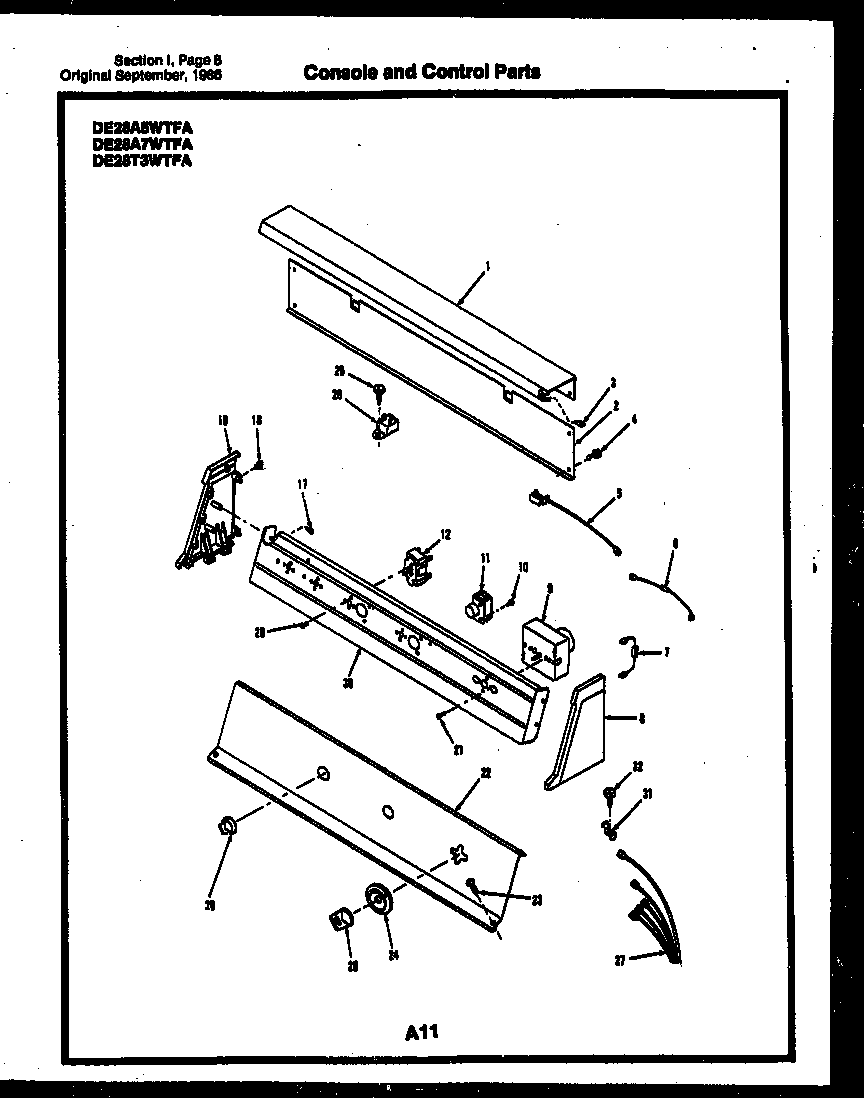

DE28A7WTFA 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI F141603-000
2	WCI F139230-026
3	WCI F139635-000
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI F139816-000
6	WCI F065111-016
7	RESISTOR (ELECTRIC MODELS ONLY)
8	WCI F139720-000
9	WCI F140776-000
9A	TIMER MOTOR, MALLORY
11	PUSH TO START SWITCH
12	ROTARY SWITCH
17	131205100 Frigidaire Screw
18	WCI F139577-000
19	WCI F139720-100
20	SCREW SWITCH TO BRACKET ( 2 )
21	WCI F060796-000
22	WCI F141599-100
23	WCI F140203-000
24	WCI F140767-000
25	KNOB-TIMER
26	ROTARY KNOB (2)
27	WCI F140796-000
27A	WCI F140823-000
27F	WCI F136345-000
27B	CLIP HARNESS TO RH CAB (2)
27C	TIE-HARN TOP PNL (NON-ILLUSTRATED)
27D	5304464772 Frigidaire Refrigerator Wire Tie
27G	WCI F063124-000
28	CONTROL
29	SEMS SCREW (2)
30	BRACKET, MTG.
31	WCI F079171-000
32	131243800 Frigidaire Screw
