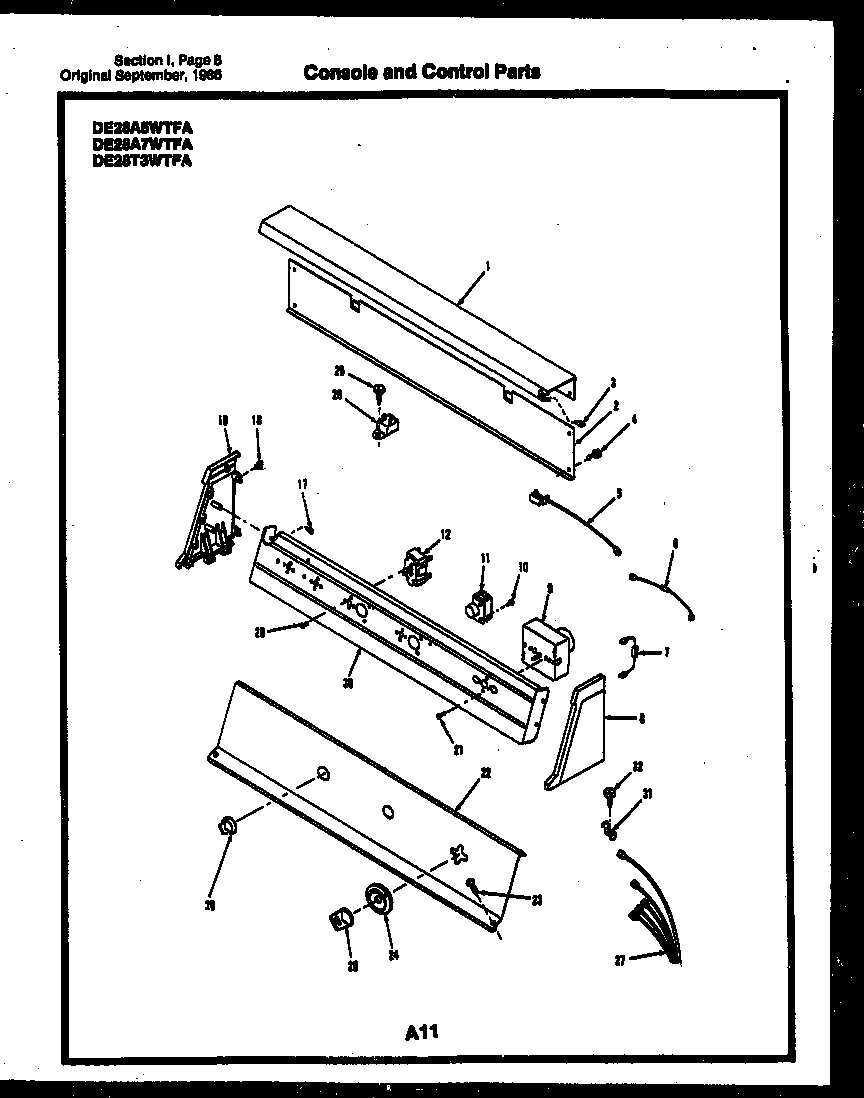

DE28T3WTFA 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI F141603-000
2	WCI F139230-026
3	WCI F139635-000
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI F139816-000
8	WCI F139720-000
9	TIMER
9A	WCI F079459-022
10	SEMS SCREW (2)
11	PUSH TO START SWITCH
17	131205100 Frigidaire Screw
18	WCI F139577-000
19	WCI F139720-100
21	WCI F060796-000
22	WCI F141608-100
23	WCI F140203-000
24	WCI F140767-000
25	KNOB-TIMER
27C	TIE-HARN TOP PNL (NON-ILLUSTRATED)
27D	5304464772 Frigidaire Refrigerator Wire Tie
27	HARNESS (ELECTRIC MODELS ONLY)
27G	WCI F063124-000
27F	WCI F136345-000
27B	CLIP HARNESS TO RH CAB (2)
27A	WCI F140804-000
30	BRACKET, MTG.
31	WCI F079171-000
32	131243800 Frigidaire Screw
