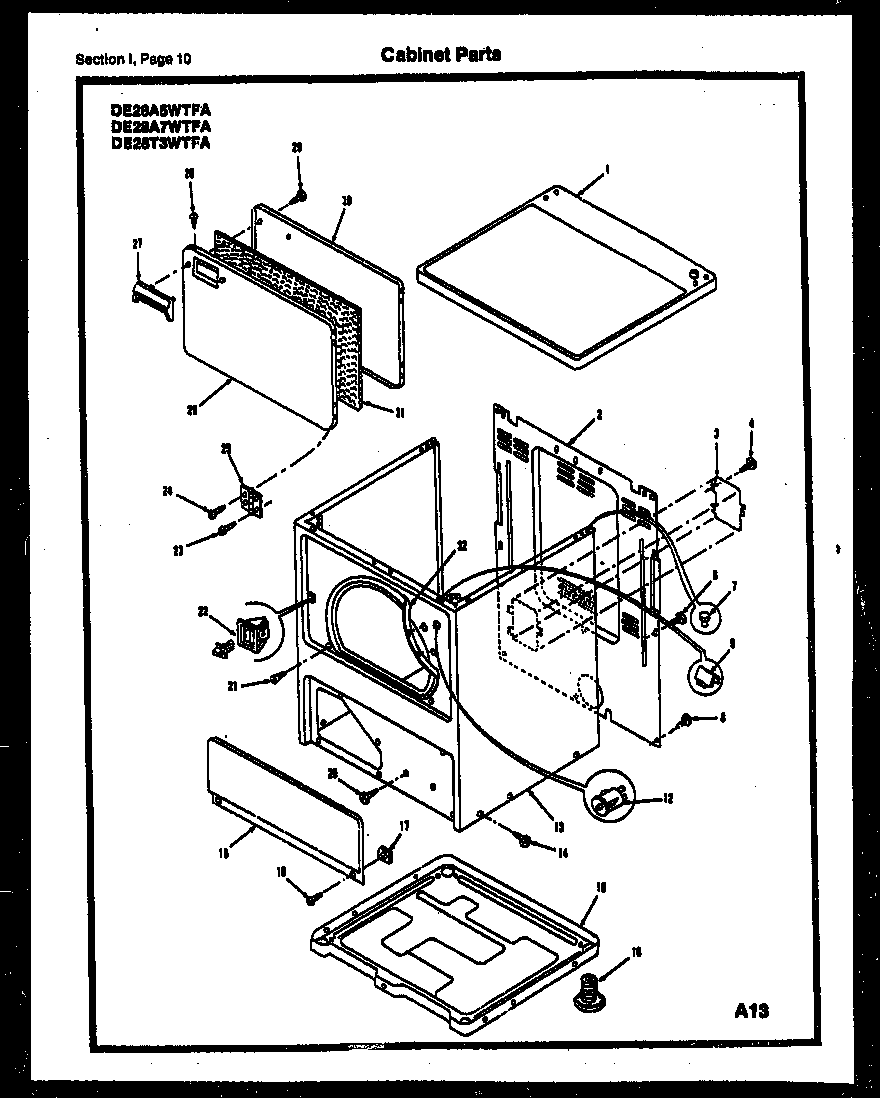

DE28T3WTFA 05 – CABINET PARTS

Products

Position	Product
*32159	WCI F140822-000
*32152	131243800 Frigidaire Screw
*32160	INSTALLATION INSTRUCTIONS
*32154	TECH. SHEET
*32153	WCI F134355-000
1	TOP PANEL, ALMOND
1	TOP PANEL, WHITE
2	WCI F139218-526
3	ACCESS PLATE TERM. BLOCK
4	5303015671 Frigidaire Bracket Termination Screw
7	WCI F001345-000
9	WCI F130448-000
12	DOOR SWITCH
13	CABINET-WHTE
13	WCI F140915-339
14	131205500 Frigidaire Screw
15	WCI F140662-026
16	WCI F137033-000
17	SPEED NUT, ELECTRIC MODELS (2)
19	ACCESS PANEL, ALMOND
19	ACCESS PANEL, WHITE
20	SCREW (6)
21	216858001 Frigidaire Refrigerator Screw
22	5366021400 Frigidaire Door Latch & Metal Strike
25	WCI F078319-000
26	OUTER DOOR PANEL, ALMOND
26	OUTER DOOR PANEL, WHITE
27	WCI F078673-200
28	SCREW (3)
29	WCI F136470-000
30	WCI F137873-028
31	WCI F132413-000
32	WCI F133271-000
