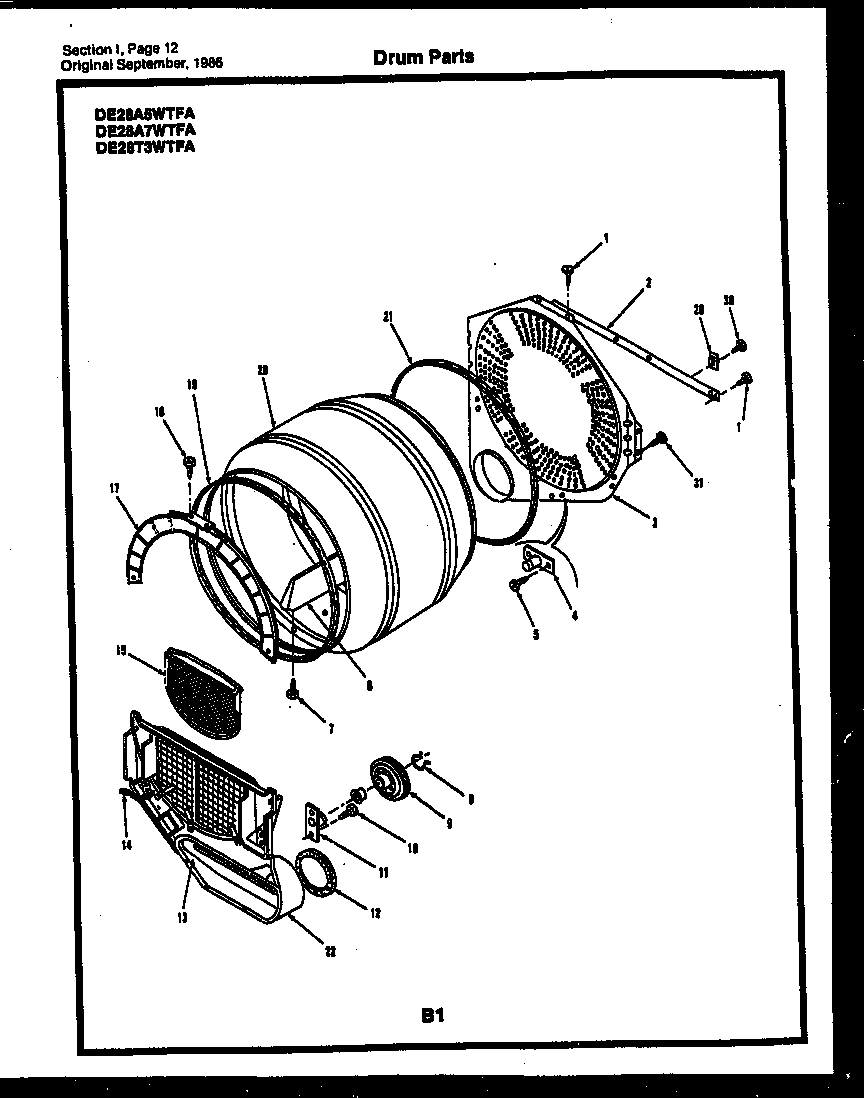

DE28T3WTFA 06 – DRUM PARTS

Products

Position	Product
2	PLENUM SUPT ASSEMBLY
3	PLENUM AND SEAL ASSEMBLY WITHOUT LIGHT
4	SHAFT AND MTG PLATE (3)
6	WCI F076968-100
7	SCREW (6)
8	WCI F063124-000
9	WCI F140562-000
10	SEMS SCREW, WATER VALVE MOUNTING (2)
11	SHAFT AND MTG PLATE (2)
12	WCI F141604-000
13	WCI F137050-000
14	WCI F078861-100
15	SCREEN-LINT
17	WCI F140927-000
18	131243800 Frigidaire Screw
19	WCI F133007-100
20	WCI F076951-332
21	WCI F133007-000
22	EXHAUST AND LINT HSG ASSEMBLY (NOTE 2)
29	WCI F131174-000
30	WCI F132080-000
31	5303015671 Frigidaire Bracket Termination Screw
