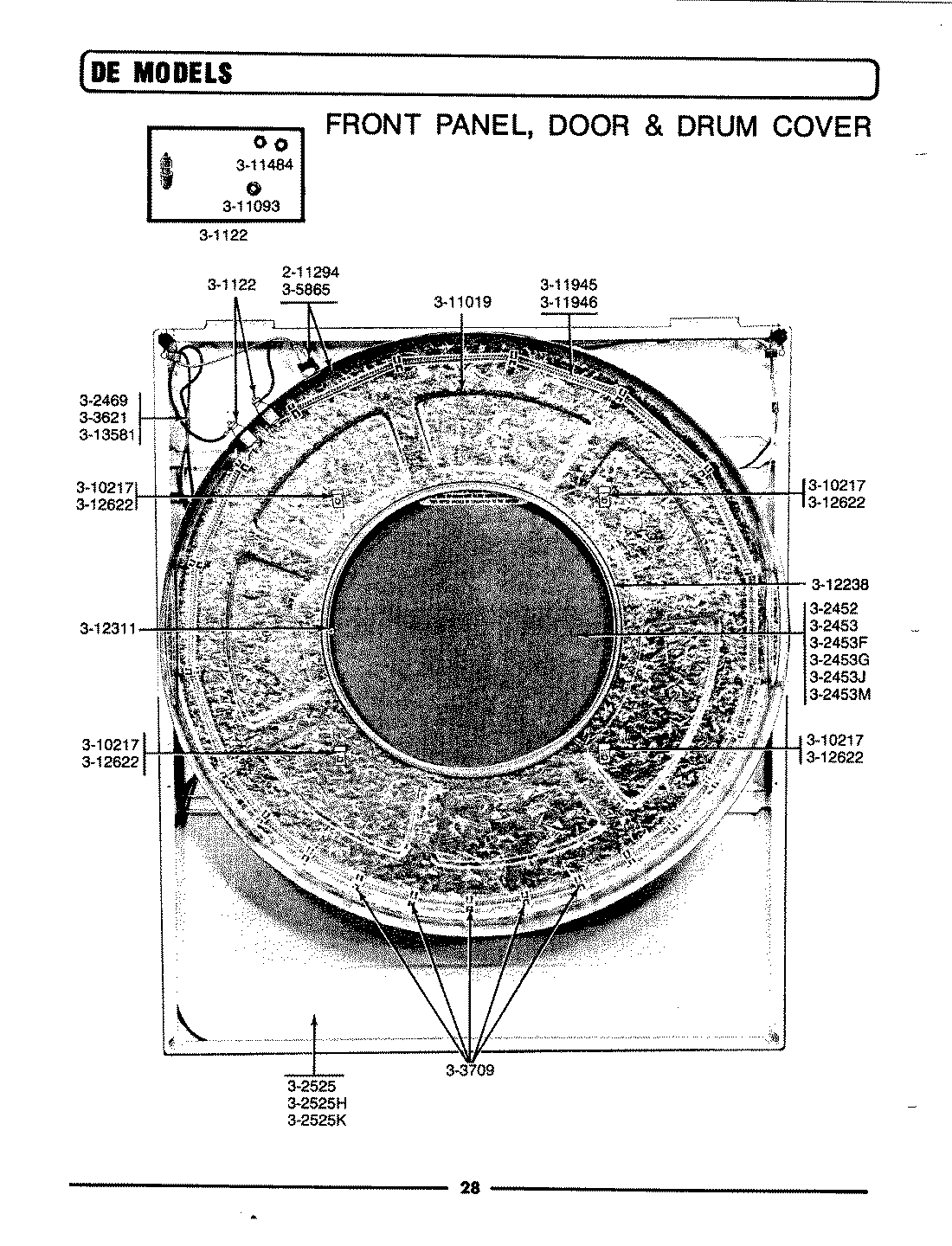

DE306 05 – FRONT PANEL, DOOR & DRUM COVER

Products

Position	Product
1	WP90767 Whirlpool Screw
2	Y304596 Whirlpool Terminal Insulator Assembly
3	DOOR LINER
4	MAY 302453
5	MAY 302453F
6	MAY 302453G
7	MAY 302453J
8	MAY 302453M
9	HARNESS FOR SHROUD
10	MAY 302525
11	MAY 302525H
12	MAY 302525K
13	MAY 303621
14	MAY 303709
15	HIGH LIMIT THERMOSTAT
16	MAY 310217
17	DRUM COVER
18	WP311093 Whirlpool Washer 7
19	WP112432 Whirlpool Nut Assembly
20	MAY Y311945
21	MAY Y311946
22	MAY 312238
23	MAY 312311
24	MAY 312622
25	SLEEVE FOR DOOR WIRES
