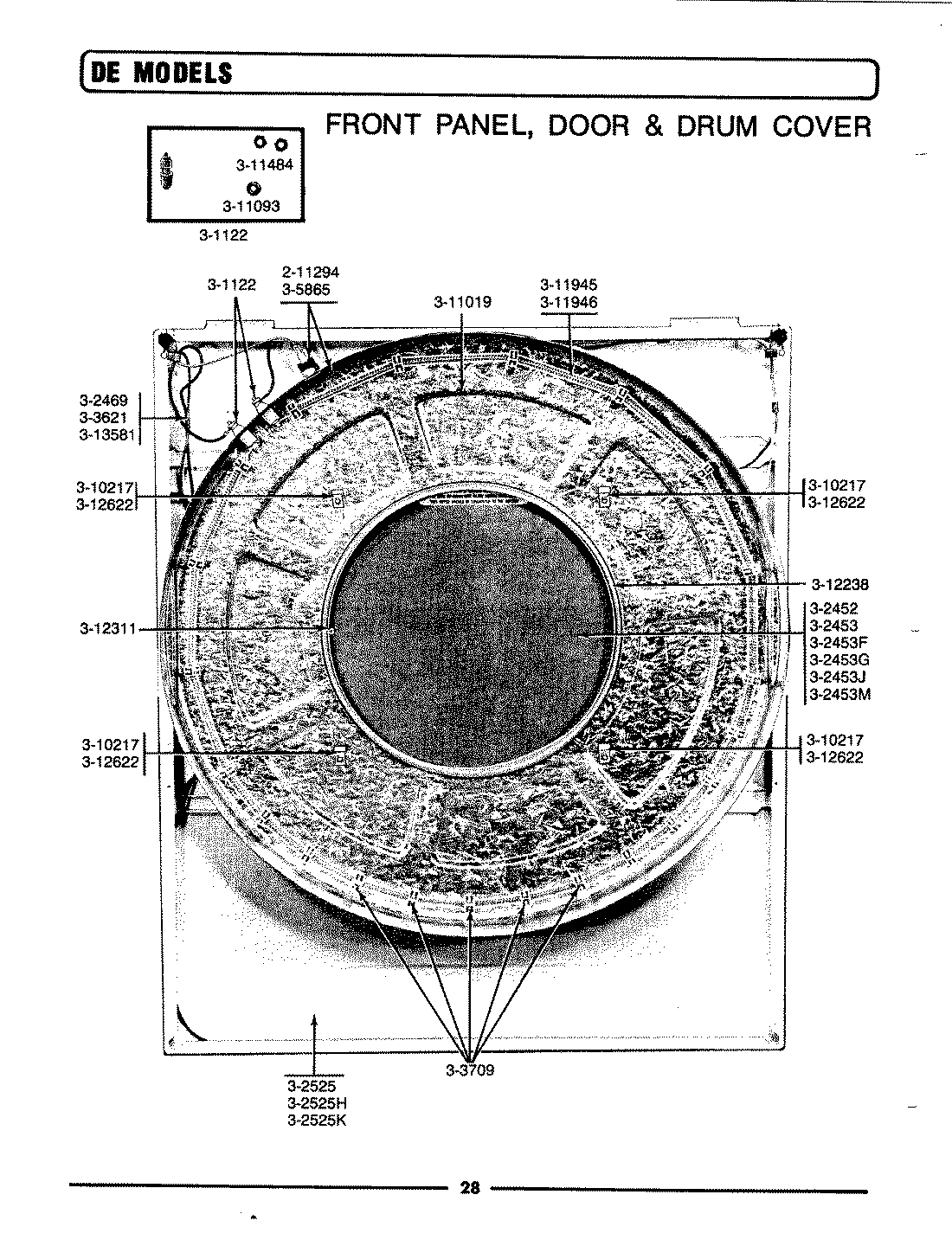

DE307 04 – FRONT PANEL, DOOR & DRUM COVER

DE307 04 – FRONT PANEL, DOOR & DRUM COVER

Written by

in

DE307 04 – FRONT PANEL, DOOR & DRUM COVER

Products

PositionProduct
1WP90767 Whirlpool Screw
2Y304596 Whirlpool Terminal Insulator Assembly
3DOOR LINER
4MAY 302453
5MAY 302453F
6MAY 302453G
7MAY 302453J
8MAY 302453M
9HARNESS FOR SHROUD
10MAY 302525
11MAY 302525H
12MAY 302525K
13MAY 303621
14MAY 303709
15HIGH LIMIT THERMOSTAT
16MAY 310217
17DRUM COVER
18WP311093 Whirlpool Washer 7
19WP112432 Whirlpool Nut Assembly
20MAY Y311945
21MAY Y311946
22MAY 312238
23MAY 312311
24MAY 312622
25SLEEVE FOR DOOR WIRES
