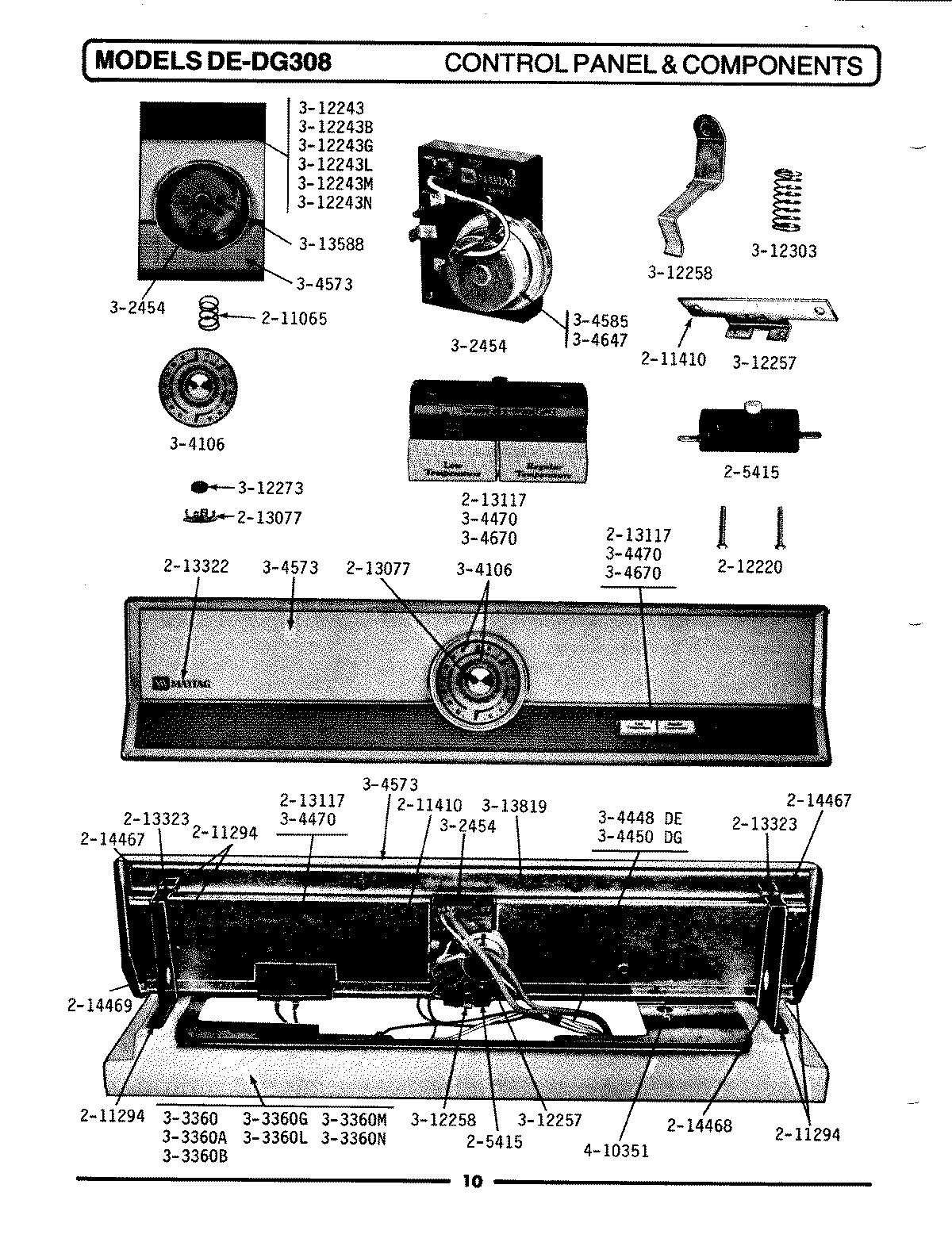

DE308 01 – CONTROL PANEL & COMPONENTS

Products

Position	Product
1	W10820036 Whirlpool Door Switch Kit
2	WP211065 Whirlpool Timer Spring
3	WP90767 Whirlpool Screw
4	MAY 211410
5	MAY 212220
6	MAY 213077
7	WP67006908 Whirlpool Refrigerator Screw
8	MAY 213322
9	MAY 213323
10	MAY 214467
11	MAY 214468
12	MAY 214469
13	MAY Y302454
14	TOP COVER-WHITE
15	MAY 303360A
16	MAY 303360B
17	MAY 303360G
18	MAY 303360L
19	MAY 303360M
20	MAY 303360N
21	MAY Y304106
22	MAY 304448
24	MAY 304470
25	MAY 304573
26	MAY Y304585
27	MAY 304647
28	BUTTON KIT
29	MAY 312243
30	MAY 312243B
31	MAY 312243G
32	MAY 312243L
33	MAY 312243M
34	MAY 312243N
35	BRACKET
36	MAY 312258
37	W10155650 Whirlpool Nut
38	MAY 312303
39	WP488234 Whirlpool Air Conditioner Screw
40	BACK-UP PLATE
41	MAY 410351
