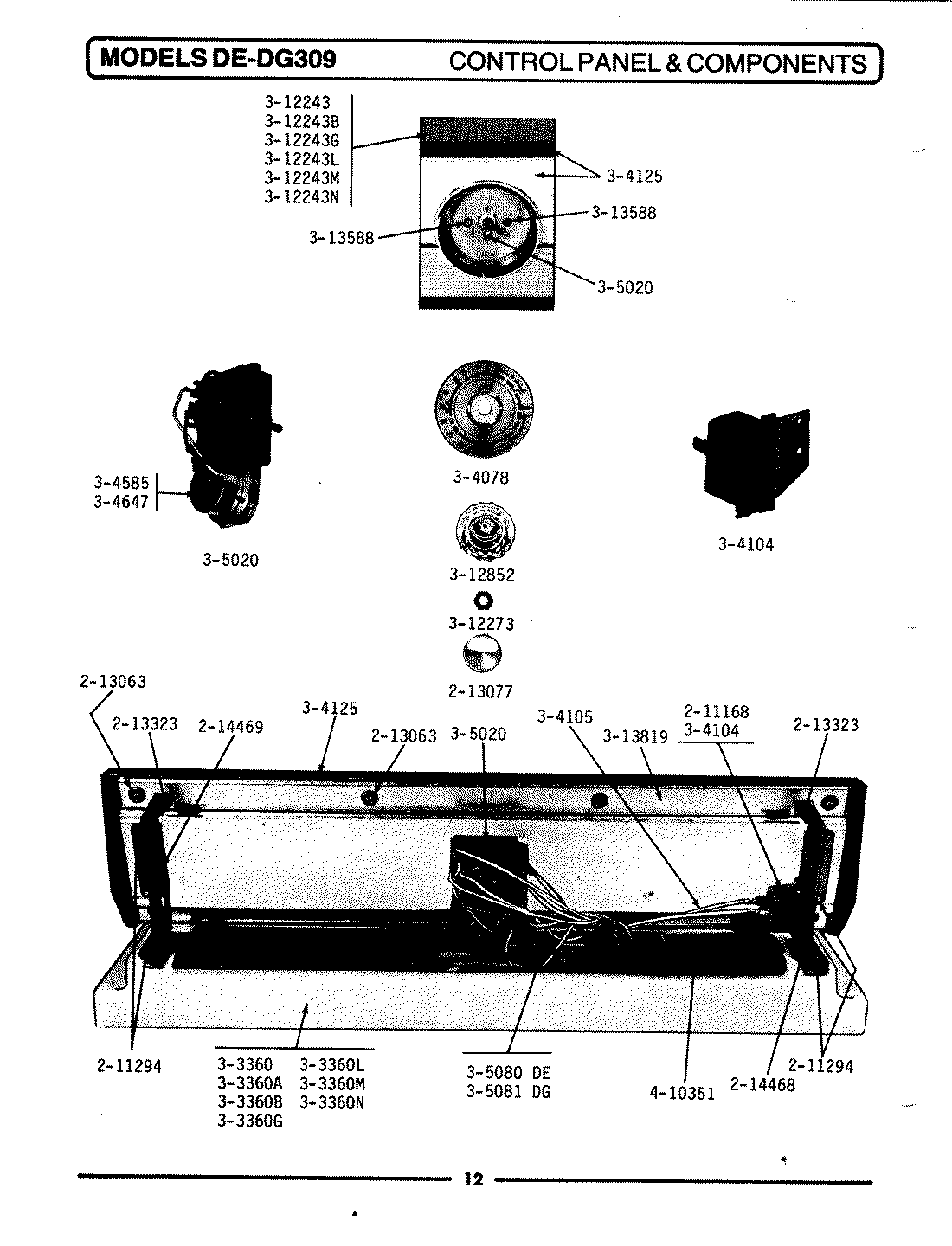

DE309 01 – CONTROL PANEL & COMPONENTS

Products

Position	Product
1	WPW10139210 Whirlpool Screw
2	WP90767 Whirlpool Screw
3	MAY 213063
4	MAY 213077
5	MAY 213322
6	MAY 213323
7	MAY 214468
8	MAY 214469
9	TOP COVER-WHITE
10	MAY 303360A
11	MAY 303360B
12	MAY 303360G
13	MAY 303360L
14	MAY 303360M
15	MAY 303360N
16	MAY 304078
17	MAY Y304104
18	BUZZER HARNESS
19	CONTROL PANEL, SUN-GLOW
21	MAY Y304585
22	MAY 304646
23	MAY Y305020
24	WIRE HARNESS
25	MAY 312243
26	MAY 312243B
27	MAY 312243G
28	MAY 312243L
29	MAY 312243M
30	MAY 312243N
31	W10155650 Whirlpool Nut
32	MAY 312852
33	WP488234 Whirlpool Air Conditioner Screw
34	BACK-UP PLATE
35	MAY 410351
