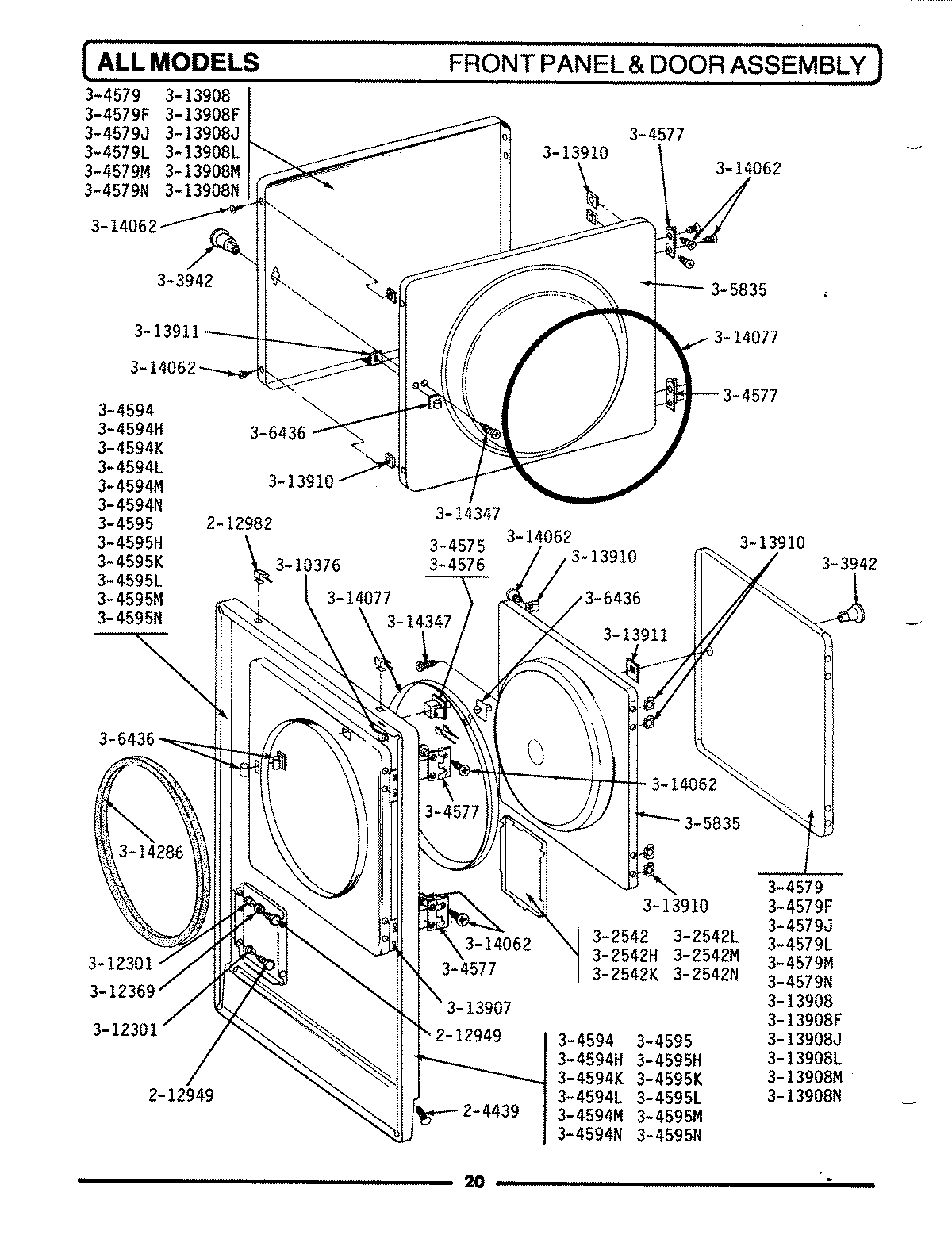

DE309 02 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
1	SCREW & FSTNER ASSY (FT. PNL)
3	MAY 212982
10	MAY 303942
11	W10169313 Whirlpool Door Switch Kit
13	MAY Y304577
14	MAY Y304579
15	MAY 304579F
16	MAY 304579J
17	MAY 304579L
18	MAY 304579M
19	MAY 304579N
26	MAY 304595
27	MAY 304595H
28	MAY 304595K
29	MAY 304595L
30	MAY 304594M
31	MAY 304594N
32	MAY 305835
33	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
34	MAY Y310376
37	LABEL, LINT SCREEN INSTR.
38	MAY Y313907
39	MAY Y313908
40	MAY 313908F
41	MAY 313908J
42	MAY 313908L
43	MAY 313908M
44	MAY 313908N
45	CLIP, DOOR LINER
46	MAY Y313911
47	MAY Y313927
49	MAY 314077
50	MAY 314119
52	WP400021-1 Whirlpool Screw
