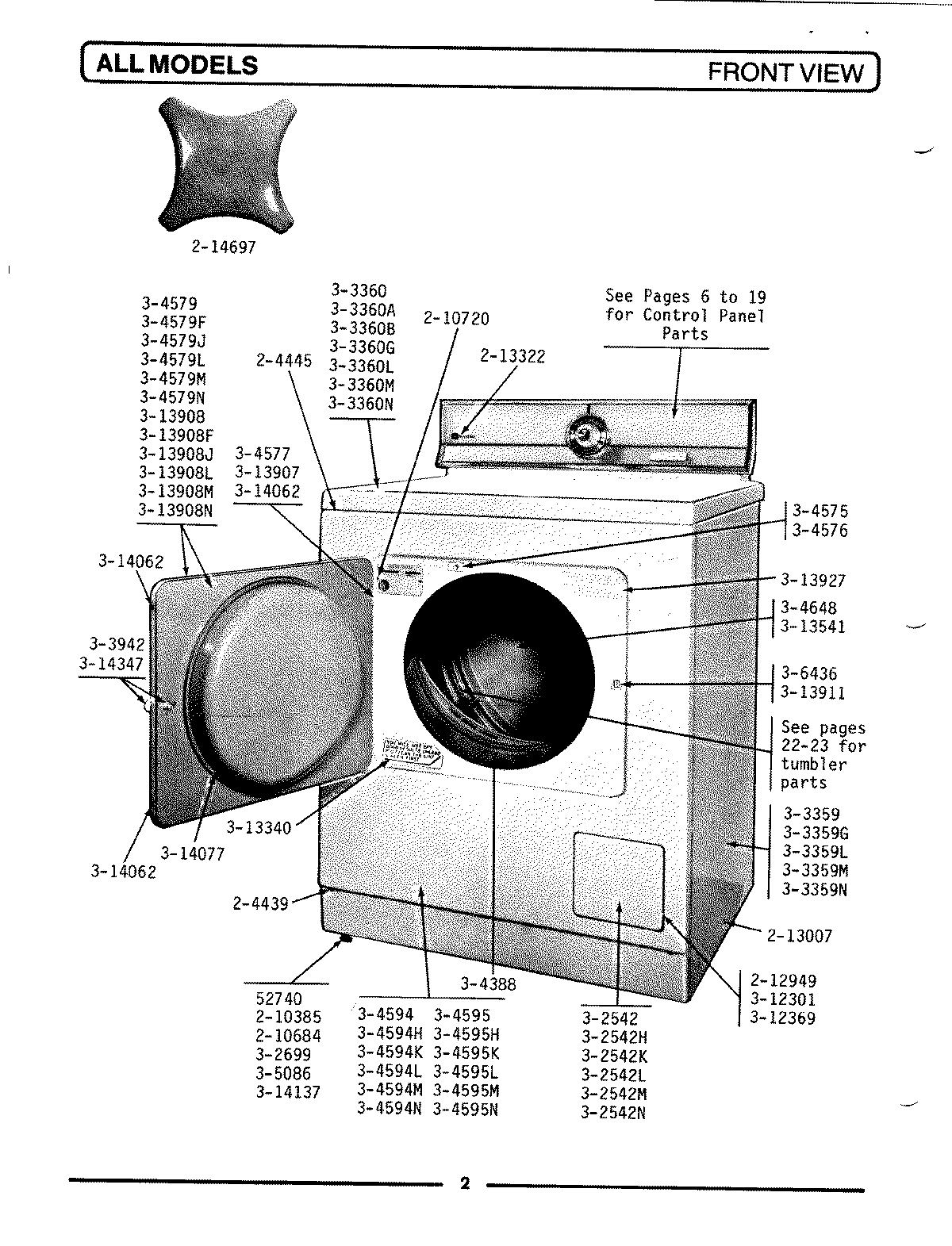

DE309 03 – FRONT VIEW
Written by
in
DE309 03 – FRONT VIEW
Products
Position
Product
1
WP62739 Whirlpool Nut
2
SCREW & FSTNER ASSY (FT. PNL)
3
MAY 204445
4
WP210385 Whirlpool Lock Nut
5
WP210684 Whirlpool Dishwasher Leveling Leg Pad
6
WP210720 Whirlpool Rivet
8
213007 Whirlpool Screw #12
9
MAY 213322
10
MAY 214697
17
LEG, ADJUSTABLE (W/NUT)—S
18
MAY 303359
19
MAY 303359G
20
MAY 303359L
21
MAY 303359M
22
MAY 303359N
23
TOP COVER-WHITE
24
MAY 303360A
25
MAY 303360B
26
MAY 303360G
27
MAY 303360L
28
MAY 303360M
29
MAY 303360N
30
MAY 303942
31
MAY Y304388
32
W10169313 Whirlpool Door Switch Kit
34
MAY Y304577
35
MAY Y304579
36
MAY 304579F
37
MAY 304579J
38
MAY 304579L
39
MAY 304579M
40
MAY 304579N
47
MAY 304595
48
MAY 304595H
49
MAY 304595K
50
MAY 304595L
51
MAY 304595M
52
MAY 304595N
53
MAY Y304648
54
W10176519 Whirlpool Leveling Feet
55
306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
58
LABEL, LINT SCREEN INSTR.
59
MAY Y313541
60
MAY Y313907
61
MAY Y313908
62
MAY 313908F
63
MAY 313908J
64
MAY 313908L
65
MAY 313908M
66
MAY 313908N
67
MAY Y313911
68
MAY Y313927
70
MAY 314077
71
WPY314137 Whirlpool Rubber Foot
72
WP400021-1 Whirlpool Screw
←
