DE3231 13 – FRONT FRAME & AIR SHROUD – Aparts

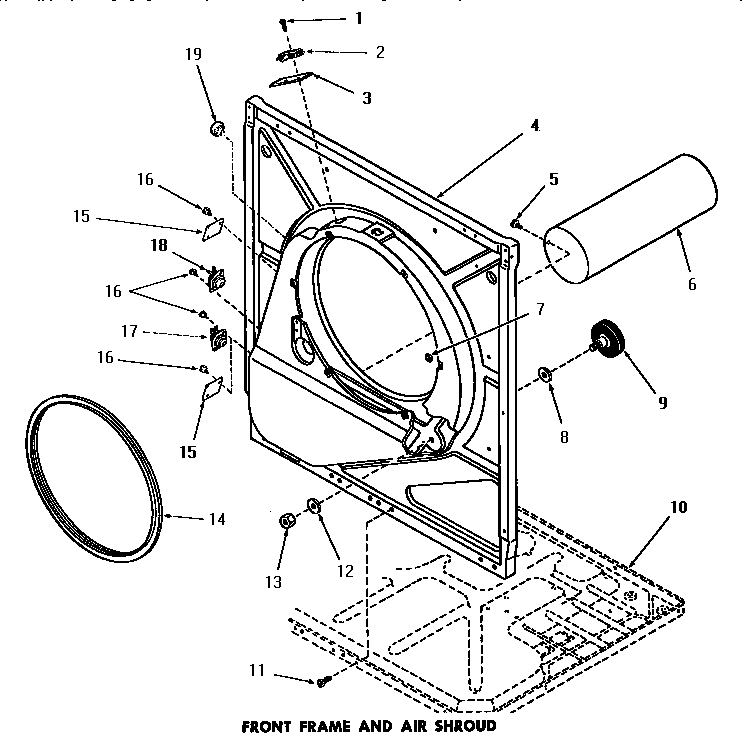

DE3231 13 – FRONT FRAME & AIR SHROUD

Products

Position	Product
1	MAY 51783
2	MAY Y51143
3	MAY 52112
4	MAY 51850
5	MAY 52150
6	MAY 51821
7	MAY 52865
8	MAY 52123
9	MAY 53555
10	SEE NOTE GROUND WIRE, GREEN
11	MAY 51784
12	MAY 52122
13	MAY 52124
14	MAY 51798
15	MAY 52550
16	WP3177991 Whirlpool Screw
17	MAY 51880
18	MAY 52393
19	MAY Y0053719
