DE3231 20 – REAR FRAME & FRAME BASE – Aparts

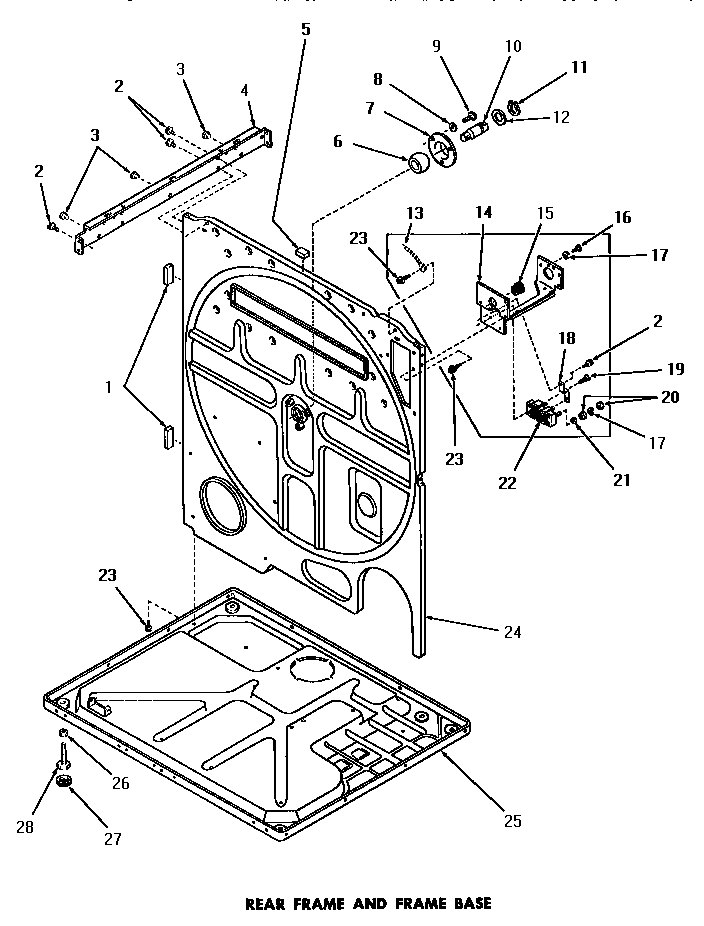

DE3231 20 – REAR FRAME & FRAME BASE

Products

Position	Product
1	MAY 20354
2	MAY 51780
3	MAY 21685
4	MAY 51818
5	MAY 54024
6	MAY Y52079
7	MAY 51826
8	MAY 03189
9	MAY 53589
10	MAY 53132
11	MAY 70061
12	MAY Y52564
13	SEE NOTE GROUND WIRE, GREEN
14	MAY Y52110
15	MAY 52113
16	MAY 52909
17	MAY 51474
18	MAY 53950
19	MAY Q6535
20	MAY Q6163
21	MAY Q6623
22	MAY 50854
23	MAY 51784
24	MAY 52574
25	MAY Y52572
26	MAY 52794
27	MAY 70282
28	MAY Y52696
