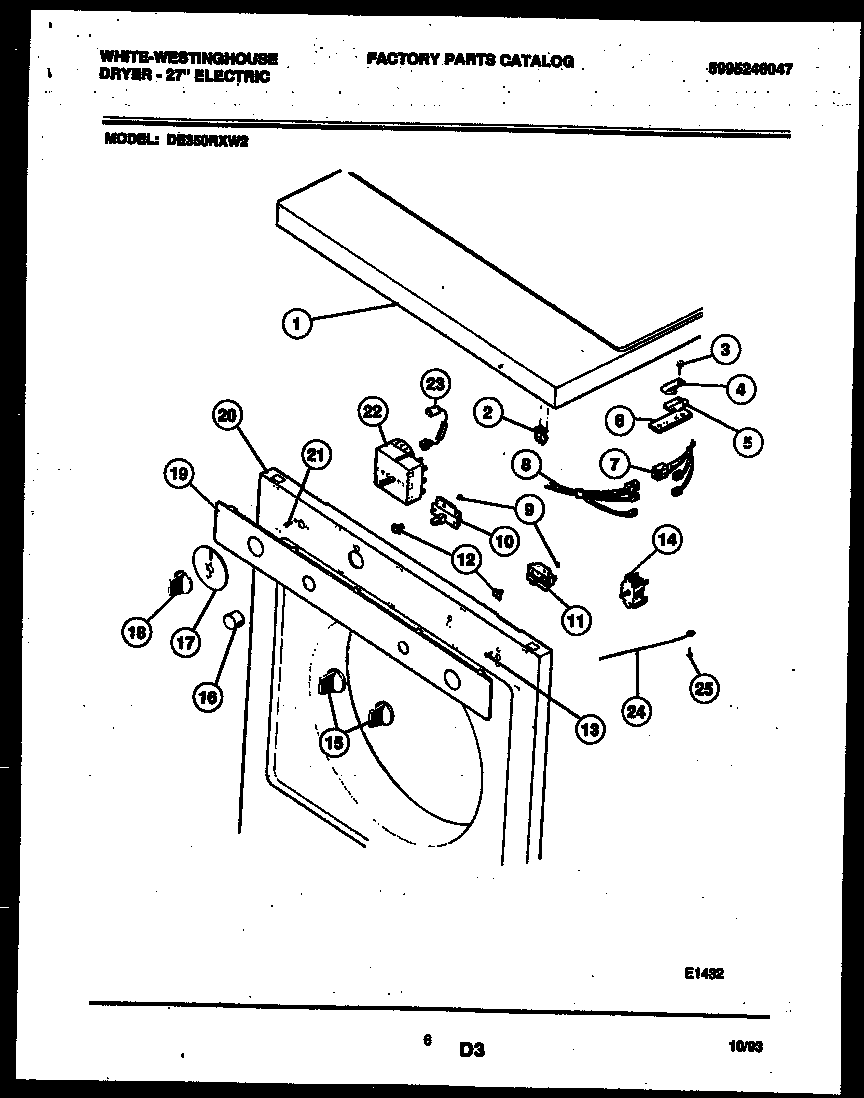

DE350RXD2 04 – CONSOLE AND CONTROL PARTS

DE350RXD2 04 – CONSOLE AND CONTROL PARTS

Written by

in

DE350RXD2 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1TOP PANEL-ALMOND
2WCI 5303281170
3WCI 3261175
4WCI 5303281163
5WCI 5303281164
6WCI 5303281165
7WCI 131159100
8WCI 131012200
9WCI 3281089
10START SWITCH
11WCI 5303207848
12WCI 3281092
13WCI 3281101
14SELECTOR SWITCH
15WCI 5300633724
16WCI 3201220
17WCI 5308027433
18WCI 5303291854
19WCI 131048700
20WCI 131003411
21WCI 5303281096
22WCI 5303010440
23RESISTOR
24WIRE-GROUND
25SCREW
