DE350RXD4 04 – CONSOLE, CONTROLS

DE350RXD4 04 – CONSOLE, CONTROLS

Written by

in

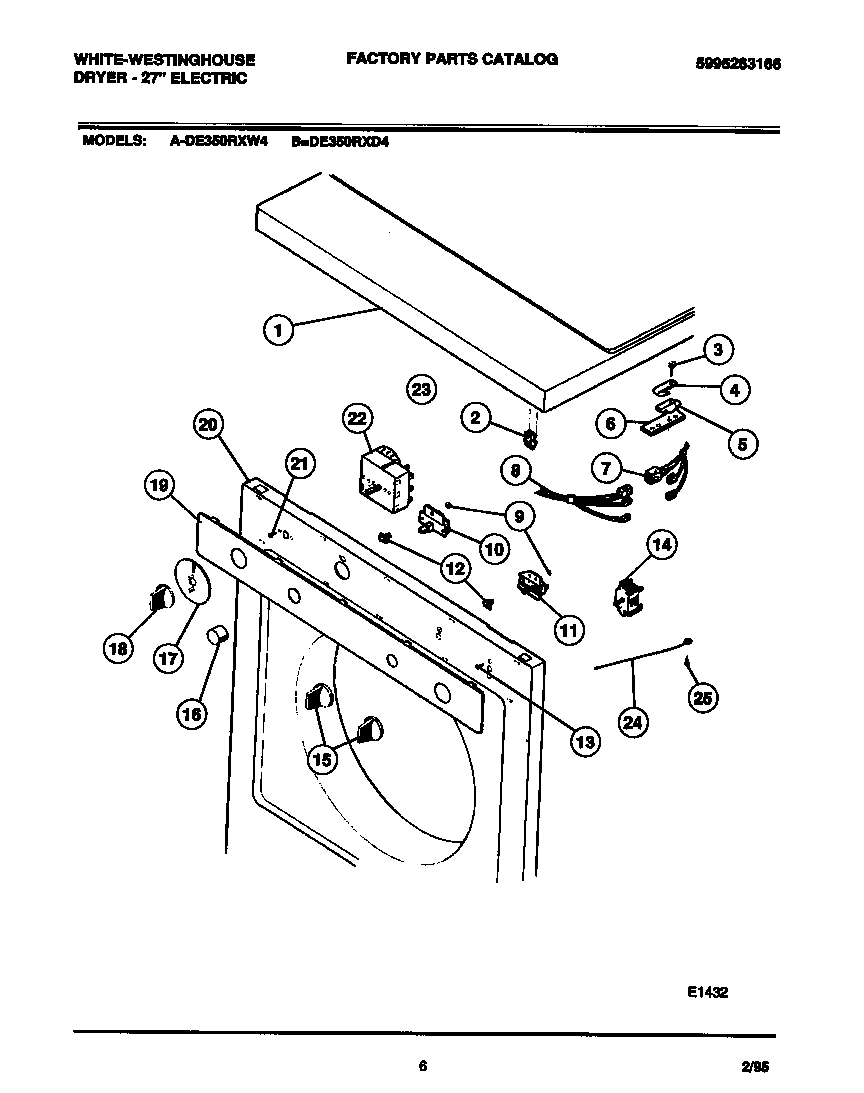

DE350RXD4 04 – CONSOLE, CONTROLS

Products

Position	Product
1	TOP PANEL-ALMOND
2	WCI 5303281170
3	WCI 3261175
4	WCI 5303281163
5	WCI 5303281164
6	WCI 5303281165
7	WCI 131236100
8	WCI 131012200
9	WCI 3281089
10	START SWITCH
11	WCI 5303207848
12	WCI 3281092
13	WCI 3281101
14	SELECTOR SWITCH
15	WCI 5300633724
16	WCI 3201220
17	WCI 5308027433
18	WCI 5303291854
19	WCI 131048700
20	WCI 131003411
21	WCI 5303281096
22	WCI 5303010440
23	RESISTOR
24	WIRE-GROUND
25	SCREW
