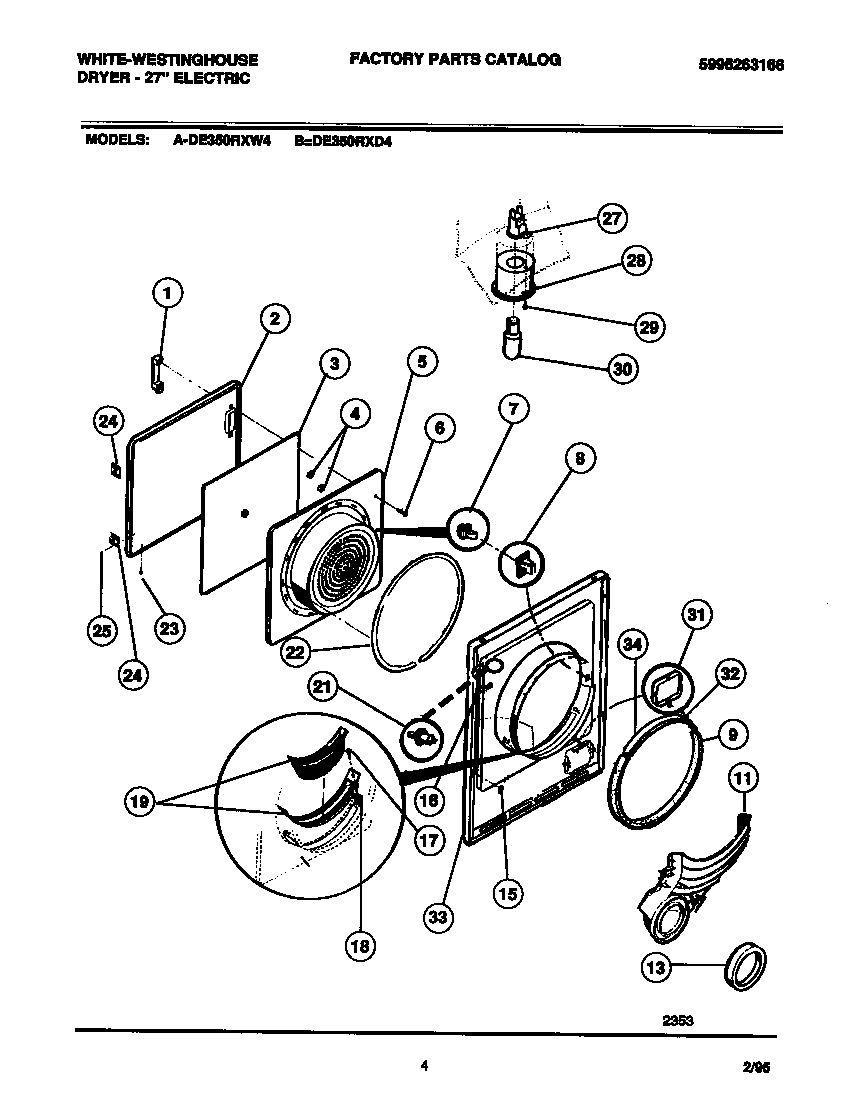

DE350RXW4 03 – DOOR, FRONT PANEL, LINT FILTER

DE350RXW4 03 – DOOR, FRONT PANEL, LINT FILTER

Written by

in

DE350RXW4 03 – DOOR, FRONT PANEL, LINT FILTER

Products

PositionProduct
*480425300809968 Frigidaire Dishwasher P-1 Washer
1WCI 5303288839
2PANEL-O.D. WHITE
3SHIELD, HEAT
4WCI 3201205
5PANEL – ID WHITE
6WCI 5303281051
75303207102 Frigidaire Door Strike
8131658800 Frigidaire Dryer Door Catch Repair Kit
9WCI 5303281049
11WCI 131002500
13134417000 Frigidaire Seal
15CLIP GUIDE (4)
16CLIP
17131420300 Frigidaire Screw
18CLIP
19TRAP-LINT
21DOOR-SWITCH
22GASKET, DOOR
24HINGE, DOOR (2)
25SCREW (8)
27WCI 5308015210
28WCI 5308015259
29SCREW
30WCI 5308027430
31DOOR-ACCESS WHITE
32131243700 Frigidaire Screw
33WCI 131003409
345303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
