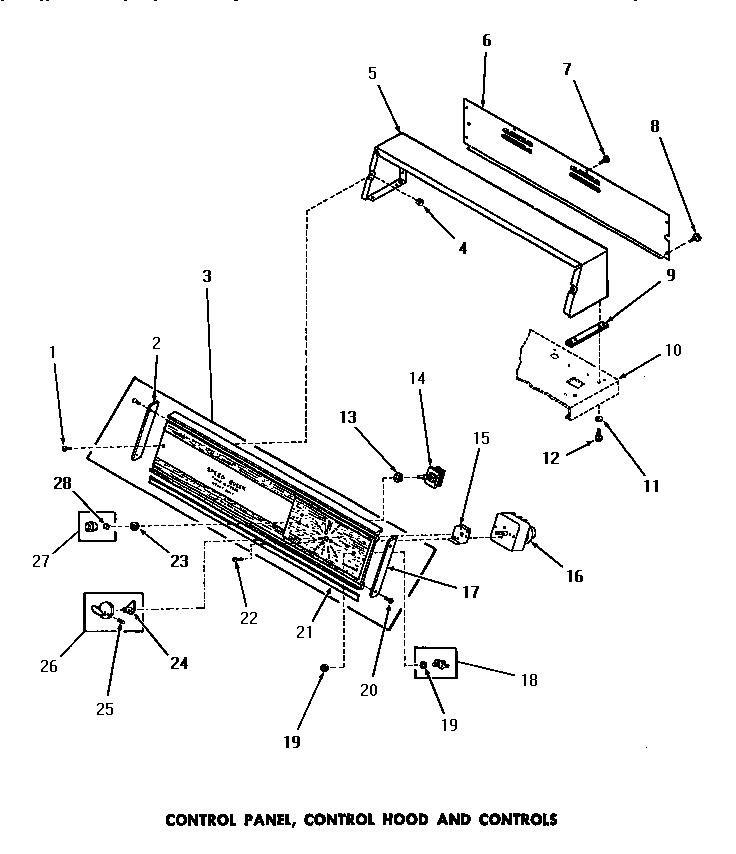

DE3790 07 – CONTROL PANEL, CONTROL HOOD & CONTROLS

Products

Position	Product
1	MAY 25232
2	MAY 25072
3	MAY Y54971
4	MAY 54038
5	MAY 52530W
5	MAY 52530H
5	MAY 52530A
6	MAY 52539GR
7	WP3177991 Whirlpool Screw
8	MAY 25724
9	MAY 23028
10	SEE NOTE GROUND WIRE, GREEN
11	MAY 20493
12	WP90767 Whirlpool Screw
13	MAY 91176
14	MAY 52624
15	MAY 25966
16	MAY 52610
17	MAY 25073
18	MAY 53768
19	MAY 52947
20	MAY 52864
21	MAY Y0053880
22	MAY Y0054441
23	MAY 24205
24	MAY 24857
25	MAY 25285
26	MAY 24858
27	MAY 22245
28	MAY 22244
