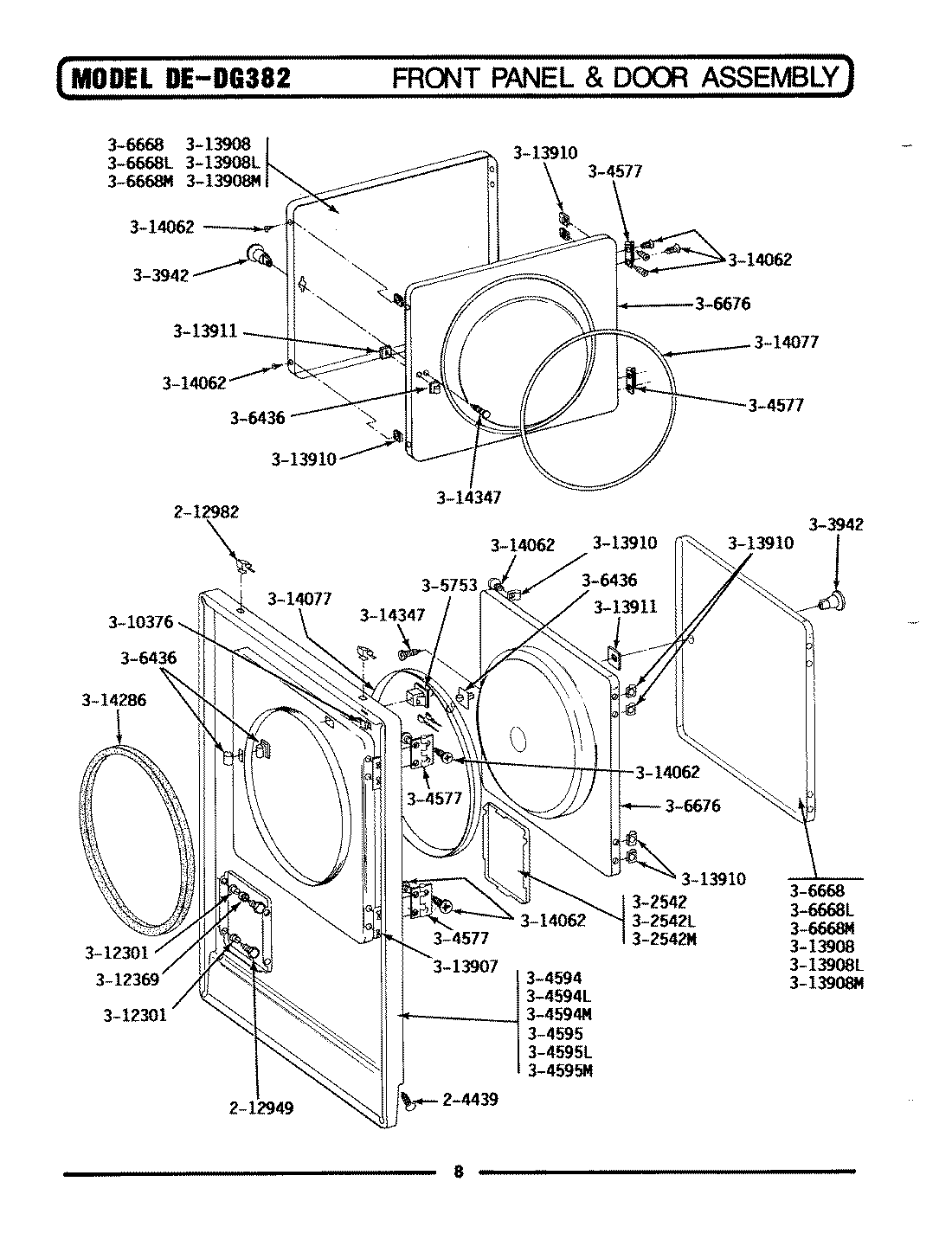

DE382 02 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
1	SCREW & FSTNER ASSY (FT. PNL)
2	SCREW, BUSHINGS
3	MAY 212982
4	MAY 303942
5	MAY Y304577
6	MAY 304595
7	MAY 304595L
8	MAY 304595M
9	W10169313 Whirlpool Door Switch Kit
10	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
11	DOOR
12	MAY 306668L
13	MAY 306668M
14	MAY 306676
15	MAY Y310376
16	BUSHING FOR ACCESS STUD
17	SLEEVE, ACCESS DOOR RUBBER
18	MAY Y313907
19	MAY Y313908
20	MAY 313908L
21	MAY 313908M
22	CLIP, DOOR LINER
23	MAY Y313911
24	MAY Y313927
26	MAY 314077
27	MAY 314119
29	WP400021-1 Whirlpool Screw
