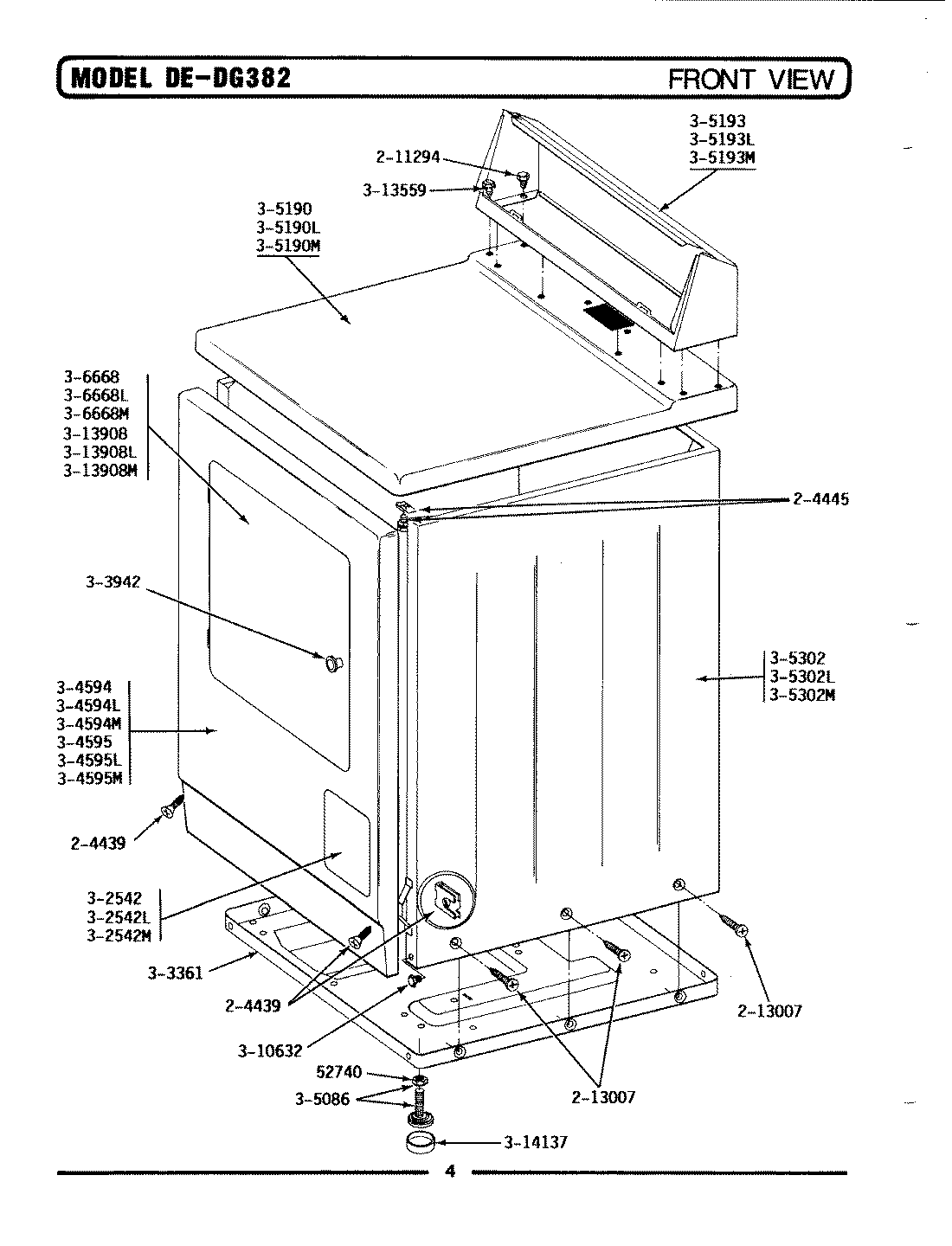

DE382 03 – FRONT VIEW

DE382 03 – FRONT VIEW

Written by

in

DE382 03 – FRONT VIEW

Products

PositionProduct
1WP62739 Whirlpool Nut
2SCREW & FSTNER ASSY (FT. PNL)
3MAY 204445
4WP90767 Whirlpool Screw
5213007 Whirlpool Screw #12
6MAY Y303361
7MAY 303942
8MAY 304595
11W10176519 Whirlpool Leveling Feet
12MAY Y305190
15MAY Y305193
18MAY 305302
21DOOR
24MAY Y310632
25MAY Y313559
26MAY Y313908
29WPY314137 Whirlpool Rubber Foot
