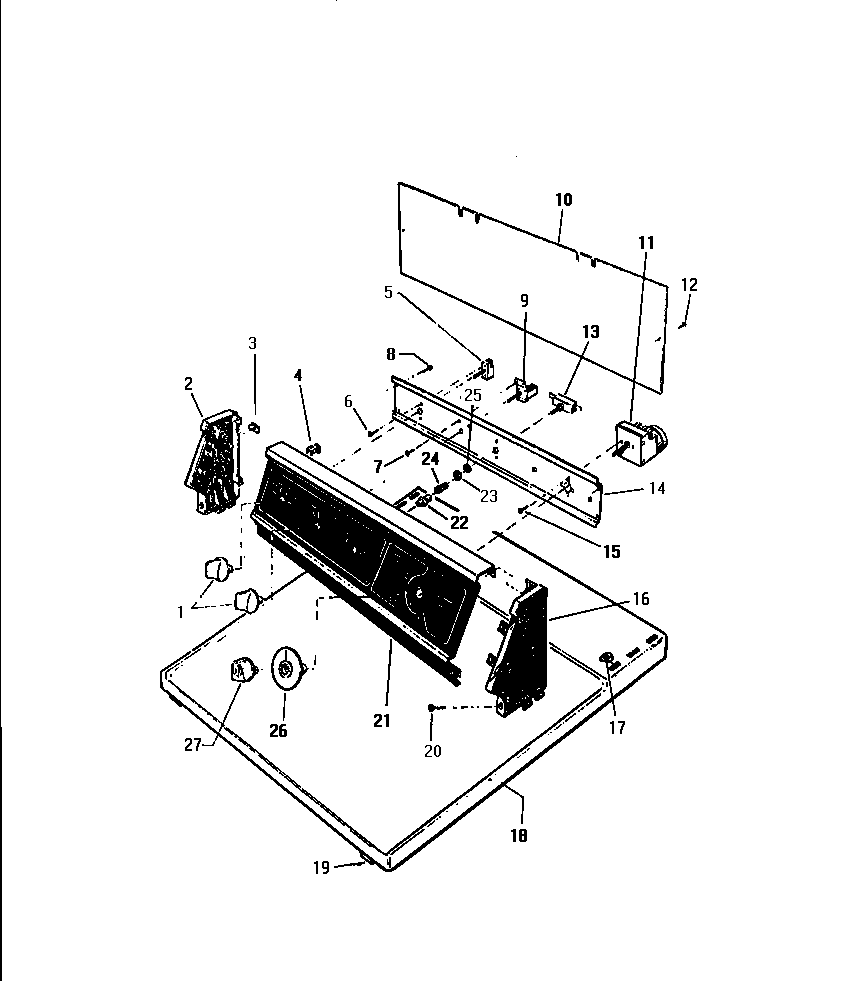

DE400EDD5 02 – CONSOLE & CONTROLS

Products

PositionProduct
2WCI Q616731
3SPEEDNUT (8)
4AWCI Q504803
5WCI Q617633
6SCREW
8SCREW (4)
10WCI Q616741
11WCI Q168603
12SCREW (4)
13START SWITCH
14WCI Q616711
15SCREW (4)
16WCI Q616732
17WCI Q503065
18WCI Q621246
19SPRING CATCH
20WCI Q504533
21WCI Q616841
22WCI Q621231
23WCI Q501450
24WCI Q66793
25WCI Q409004
26WCI Q617641
27KNOB TIMER
