DE400EDV1 04 – DRUM

DE400EDV1 04 – DRUM

Written by

in

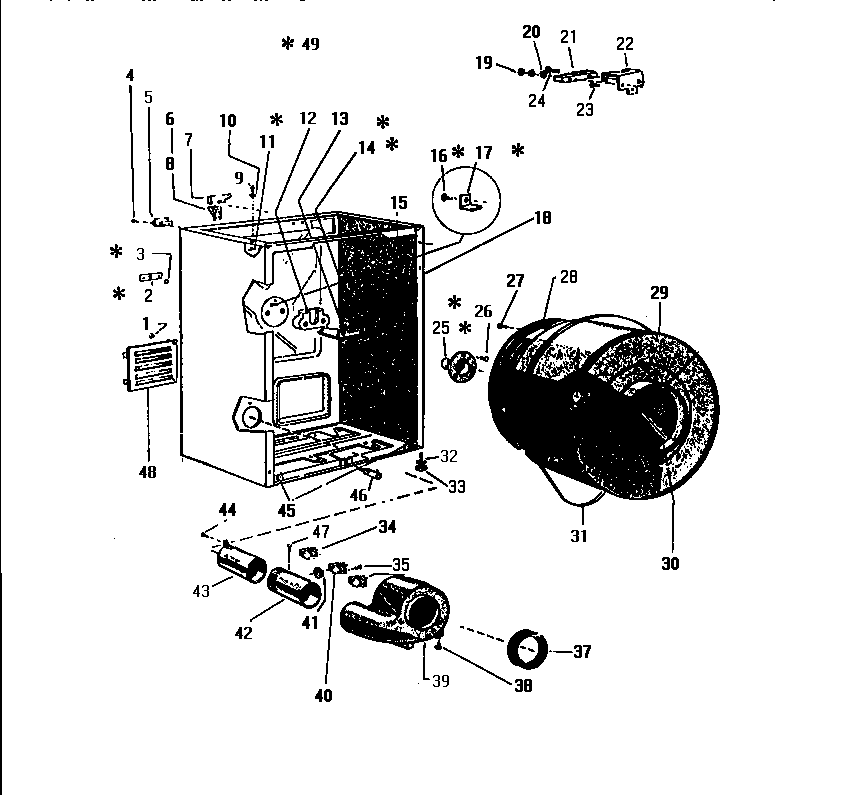

DE400EDV1 04 – DRUM

Products

Position	Product
2	SPEED NUT STRIP
3	BALL
5	WCI Q155561
6	WCI Q435098
7	WCI Q133281
8	WCI Q133283
9	WCI Q502482
10	WCI Q440067
11	WCI 1466314
12	BEARING
13	BRACKET
14	SCREW
16	WCI Q505564
17	BRACKET
18	BODY, FR AV
19	WCI Q401002
20	WCI Q440082
21	TERMINAL BLOCK
22	WCI Q133288
23	WCI Q409702
24	WCI Q403005
25	SHAFT
26	SCREW
27	SCREW (3)
28	WCI Q165773
29	SPINNER, BASKET
30B	WCI Q501592
30	WCI Q615892
30A	WCI Q615891
31	WCI Q63807
33	WCI Q16971
34	THERMOSTAT, LOW HEAT
35	SCREW
37	WCI Q19462
38	SCREW (4)
39	WCI Q171281
40	THERMOSTAT, REGULAR HEAT
41	WCI Q606131
42	DUCT, THERM.
43	WCI Q182901
45	WCI Q502956
46	WCI Q504281
47	SCREW (4)
48	WCI Q94811
49	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
