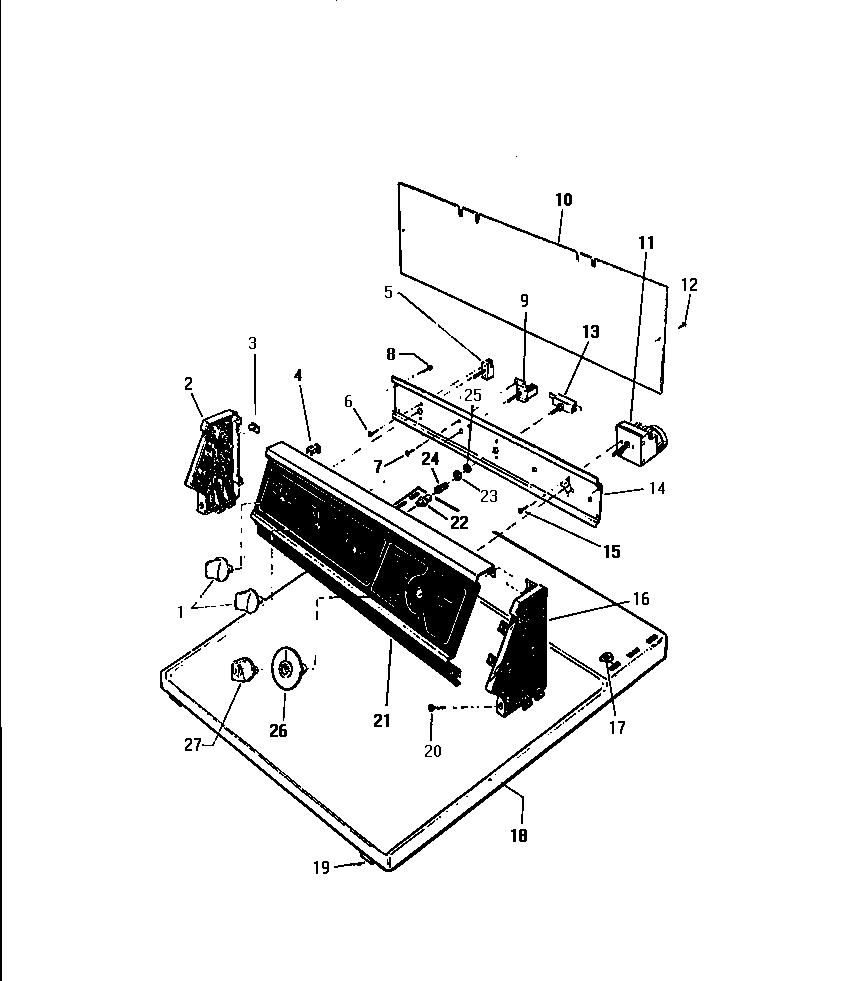

DE400EDV4 02 – CONSOLE & CONTROLS

Products

Position	Product
2	WCI Q616731
3	SPEEDNUT (8)
4	WCI Q504801
5	WCI Q617633
6	SCREW
8	SCREW (4)
10	WCI Q616741
11	WCI Q168603
12	SCREW (4)
13	START SWITCH
14	WCI Q616711
15	SCREW (4)
16	WCI Q616732
17	WCI Q503065
18C	PANEL TOP, FR AV
19	SPRING CATCH
20	WCI Q504533
21	WCI Q616841
22	WCI Q621231
23	WCI Q501450
24	WCI Q66793
25	WCI Q409004
26	WCI Q617641
27	KNOB TIMER
