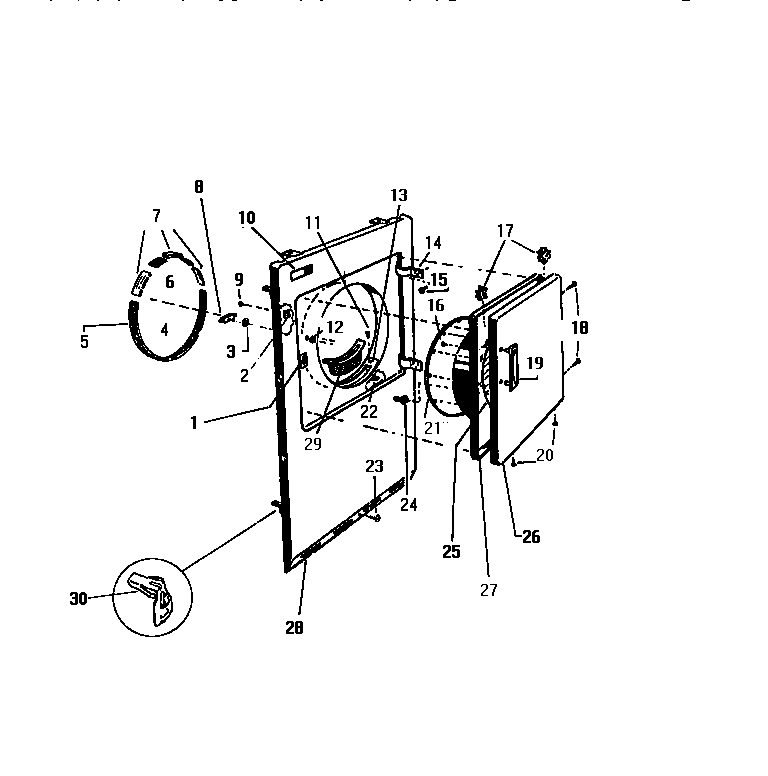

DE400JDF1 03 – FRONT PANEL, DOOR

DE400JDF1 03 – FRONT PANEL, DOOR

Written by

in

DE400JDF1 03 – FRONT PANEL, DOOR

Products

Position	Product
1	WCI Q504551
2	WCI Q500255
3	WCI Q409004
4	WCI Q15142
5	WCI Q142888
6	WCI Q15141
7	GUIDE KIT
8	WCI Q622422
9	SCREW (4)
10	WCI Q604443
11	WCI Q403103
12	WCI Q501450
13	FRAME LINT TRAP
14	WCI Q607301
16	WCI Q503952
17	WCI Q631591
19	WCI Q622791
20	WCI Q504773
21	WCI Q167703
22	WCI Q500265
23	WCI Q500717
24	WCI Q504552
25	SHIELD
26	PANEL OUTER DOOR, COFFEE
27	PANEL INNER DOOR, COFFEE
28	WCI Q632697
29	WCI Q632621
30	CLIP (4)
