DE400JDH1 04 – CABINET & DRUM – Aparts

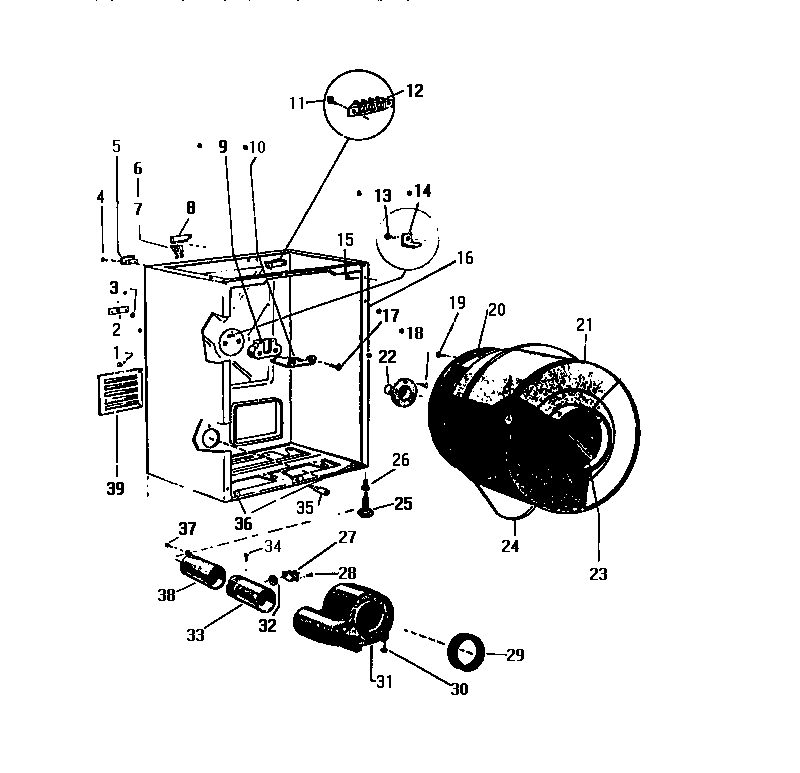

DE400JDH1 04 – CABINET & DRUM

Products

Position	Product
*61800	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
2	SPEED NUT STRIP
3	BALL
5	WCI Q155561
6	WCI Q435098
7	WCI Q133283
8	WCI Q167096
9	BEARING
10	BRACKET
12	WCI Q633751
14	BRACKET
15	WCI Q505564
16	BODY, WHEAT
17	SCREW
18	SCREW
19	SCREW (3)
20	WCI Q165773
21	SPINNER, BASKET
22	SHAFT
23A	WCI Q615891
23	WCI Q615892
23B	WCI Q501592
24	WCI Q63807
25	WCI Q504971
26	GROMMET ( FOOT BOLT )
27	WCI Q634401
28	SCREW
29	WCI Q19462
30	SCREW (4)
31	WCI Q171281
32	WCI Q606131
33	DUCT, THERM.
35	TOGGLE KIT
36	WCI Q505011
37	SCREW (4)
38	WCI Q182901
39	WCI Q94811
