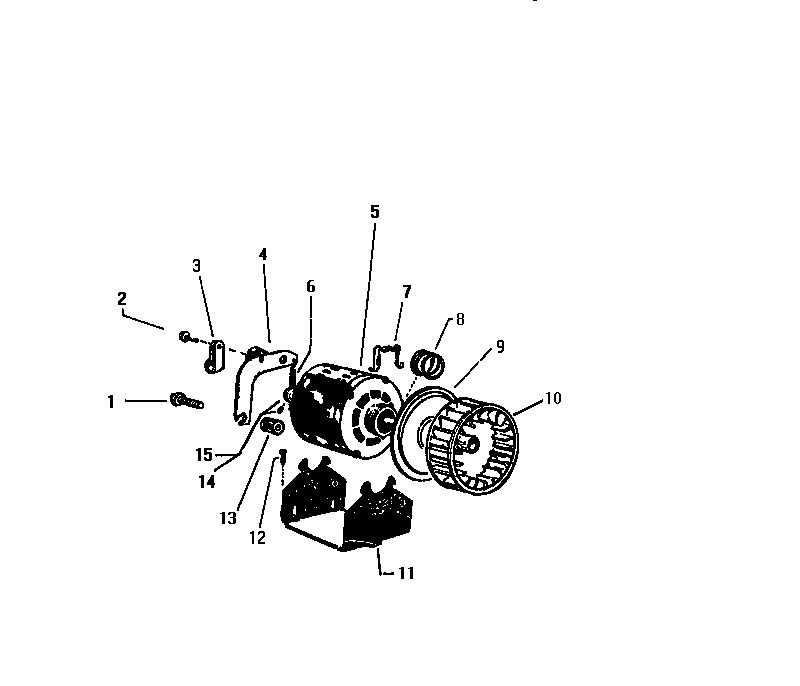

DE400JDV1 06 – MOTOR

Products

Position	Product
1	WCI Q433401
2	WCI Q414002
3	CLAMP
4	IDLER PULLEY AND BRACKET
5F	START SWITCH FOR Q616391 EMER.
5	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
5E	START SWITCH FOR Q616401 GE
5D	START SWITCH FOR Q615921 WW
5C	MOTOR PRODUCT NO. Q616391, EMER. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
5B	MOTOR PRODUCT NO., G.E. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
5A	(MOTOR PRODUCT NO., W.W.) MOTOR SERVICE REPLACEMENT IS P/N
6	SPRING
7	WCI Q62206
8	WCI Q94715
9	WCI Q94948
10	WCI Q615901
11	WCI Q94874
12	SCREW
13	WCI Q600179
14	SCREW
15	PULLEY (SEE NOTE 1)
