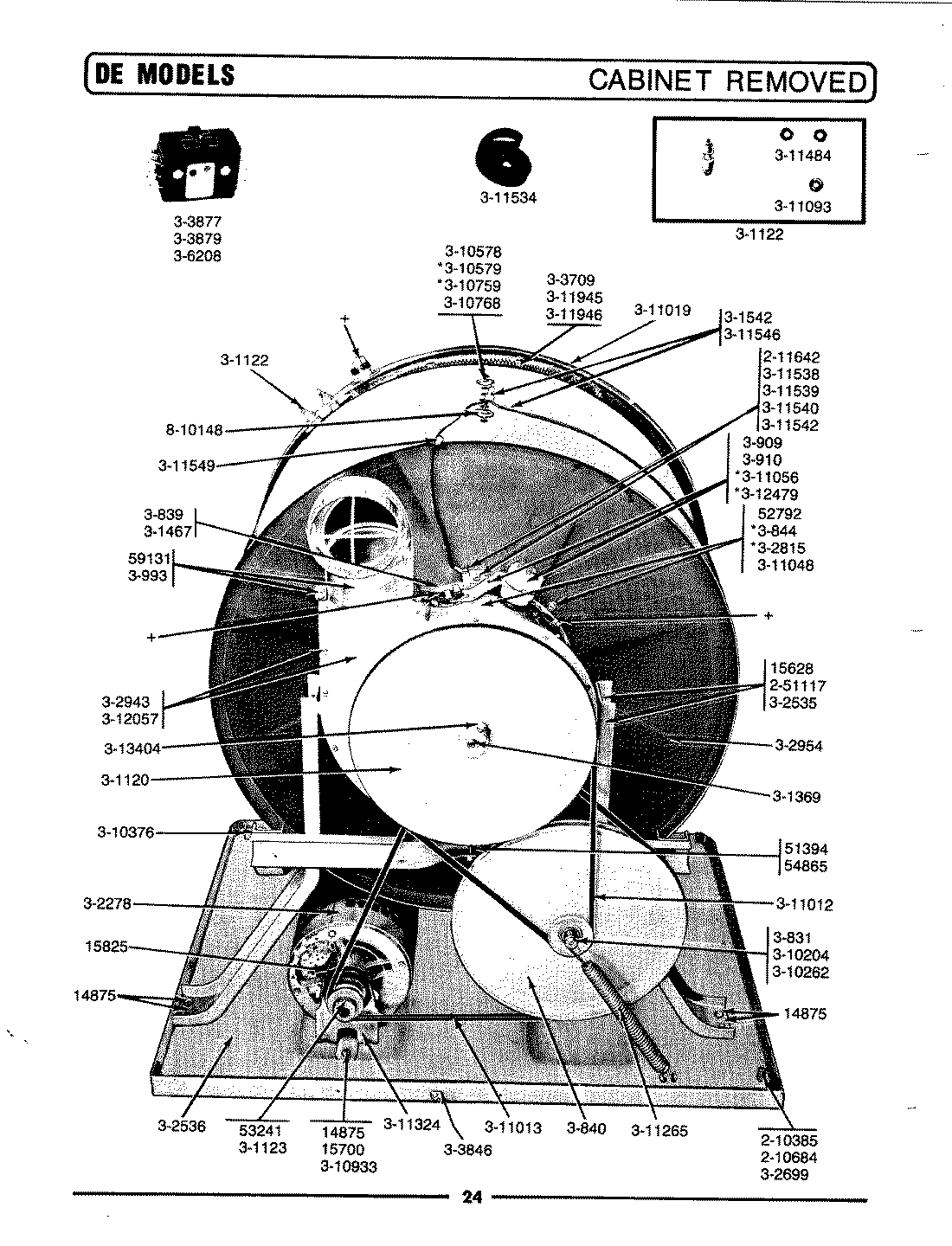

DE407 01 – CABINET REMOVED

Products

Position	Product
1	MAY 014875
2	MAY 015628–
3	MAY 015700
4	WPY015825 Whirlpool Motor Clip
5	MAY 051394
6	MAY 052792
7	MAY Y053241
8	MAY 054865
9	MAY Y059131
10	WP210385 Whirlpool Lock Nut
11	WP210684 Whirlpool Dishwasher Leveling Leg Pad
13	MAY 300831
14	MAY 300839
15	MAY 300840
16	MAY Y300844
19	MAY Y301120
20	Y304596 Whirlpool Terminal Insulator Assembly
21	MAY 301123
22	MAY 301369
23	MAY Y302278
24	SUPPORT
25	BASE
26	LEG, ADJUSTABLE (W/NUT)—S
27	MAY Y302815
28	MAY 302943
29	DRUM W/FELT – PORCELAIN
30	MAY 303709
32	MAY 303846
33	MAY Y310376
34	MAY 310578
35	MAY Y310759
36	MAY 310768
37	MAY 310933
38	MAY Y311012
39	MAY Y311013
40	DRUM COVER
41	WP311093 Whirlpool Washer 7
42	MAY 311265
43	MAY 311324
44	MAY 311534
45	MAY Y311538
46	MAY Y312057
48	MAY Y313404
49	MAY 211642
50	MAY 251117
51	MAY 301467
52	MAY 301542
53	MAY Y303877
54	MAY Y303879
55	MAY 306208
56	MAY 310204
57	MAY 310262
58	SCREW, No.10-24 X 11/16 INCH
59	MAY 311048
61	WP112432 Whirlpool Nut Assembly
62	MAY Y311539
63	COVER FOR CARBON BRUSH
64	MAY Y311542
65	MAY 311546
66	MAY 810148
