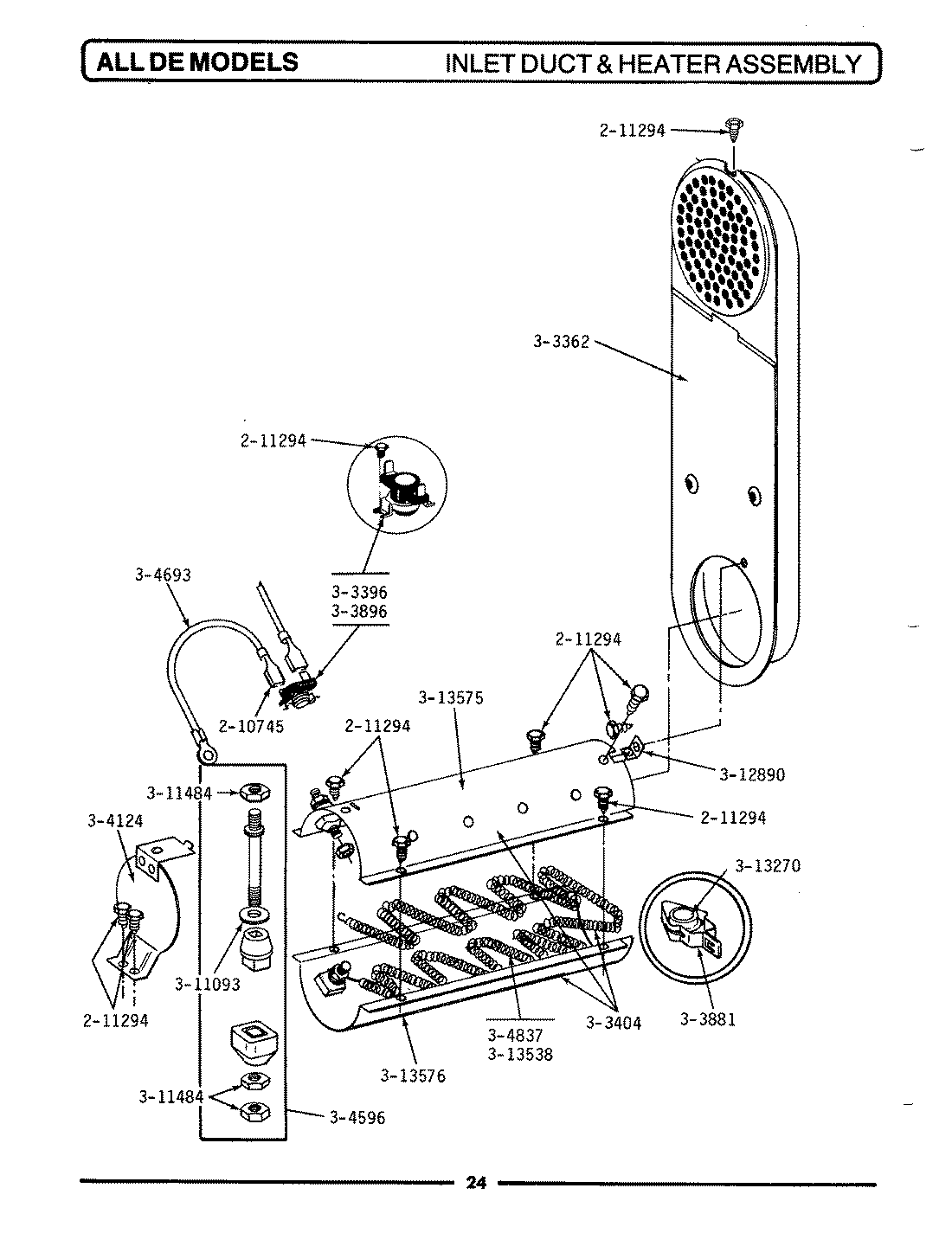

DE408 04 – INLET DUCT & HEATER ASSEMBLY

Products

Position	Product
1	MAY 210745
2	WP90767 Whirlpool Screw
3	MAY Y303362
4	WP303396 Whirlpool Thermostat
5	WPY303404 Whirlpool Heating Element
6	WPY303881 Whirlpool Clip and Insulator
7	WP303896 Whirlpool High Limit Thermostat
8	MAY 304124
9	Y304596 Whirlpool Terminal Insulator Assembly
10	WPY304693 Whirlpool Wire Jumper
11	W10116793 Whirlpool Element
12	WP311093 Whirlpool Washer 7
13	WP112432 Whirlpool Nut Assembly
14	MAY Y312890
15	MAY Y313270
16	WPY313538 Whirlpool Heater Element
17	MAY Y313575
18	MAY Y313576
