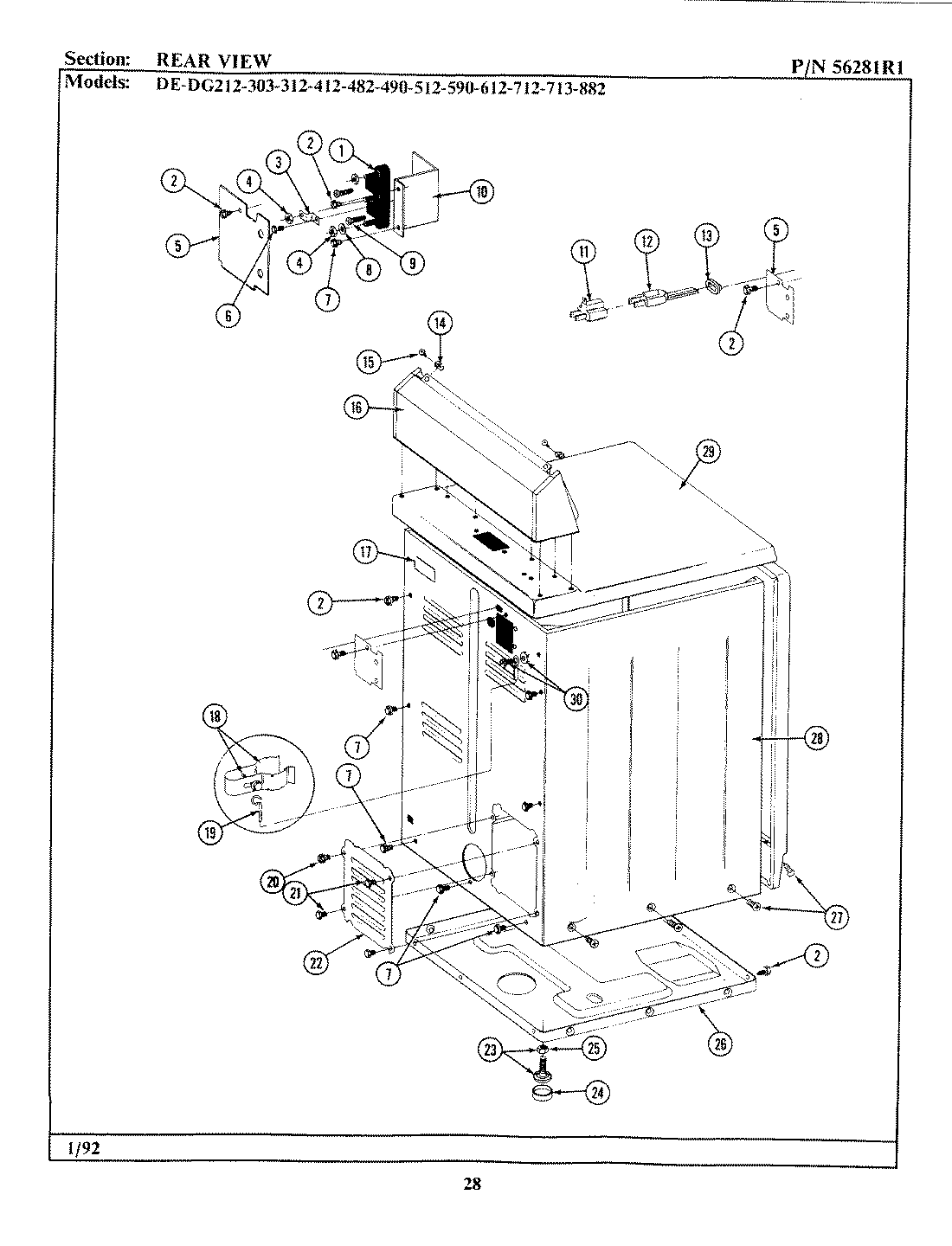

| 2 | MAY Y313561 |
| 3 | PART NOT USED |
| 4 | WP112432 Whirlpool Nut Assembly |
| 5 | MAY Y312905 |
| 6 | PART NOT USED |
| 7 | MAY Y310632 |
| 8 | WPY311270 Whirlpool Washer TE |
| 9 | SCREW, No.10-24 X 3/4 INCH-----O |
| 10 | PART NOT USED |
| 14 | MAY 215075 |
| 15 | MAY 210932 |
| 16 | MAY Y305193 |
| 17 | INSTRUCTION LABEL |
| 18 | MAY 301548 |
| 19 | WP311155 Whirlpool Wire Assembly |
| 20 | MAY Y313559 |
| 21 | WP90767 Whirlpool Screw |
| 22 | MAY Y312951 |
| 23 | W10176519 Whirlpool Leveling Feet |
| 24 | WPY314137 Whirlpool Rubber Foot |
| 25 | WP62739 Whirlpool Nut |
| 26 | MAY Y303361 |
| 27 | 213007 Whirlpool Screw #12 |
| 28 | MAY 305302 |
| 29 | TOP COVER ASSY. (WHT) |
| 30 | MAY 303846 |
