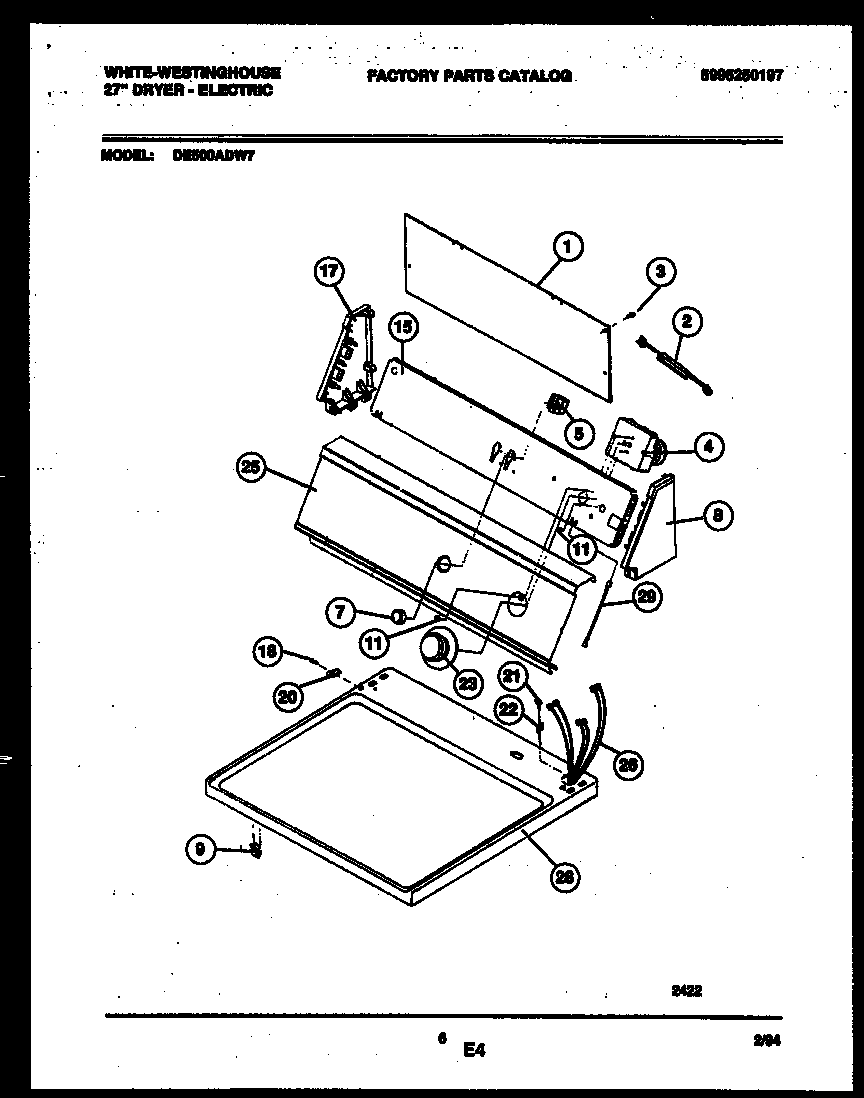

DE500ADD7 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*87247WCI 08007735
1COVER-BACK
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
4131062300 Frigidaire Timer
5WCI 131048000
7WCI 131032900
8WCI 5303291352
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
15BRACKET – CONTROL
17WCI 5303291344
18WCI 5303289526
20CLIP
21131243800 Frigidaire Screw
23WCI 131118900
25WCI 131121500
26WCI 131235100
28WCI 131130304
29WCI 131062202
