DE500EDD4 05 – HEATER HOUSING – Aparts

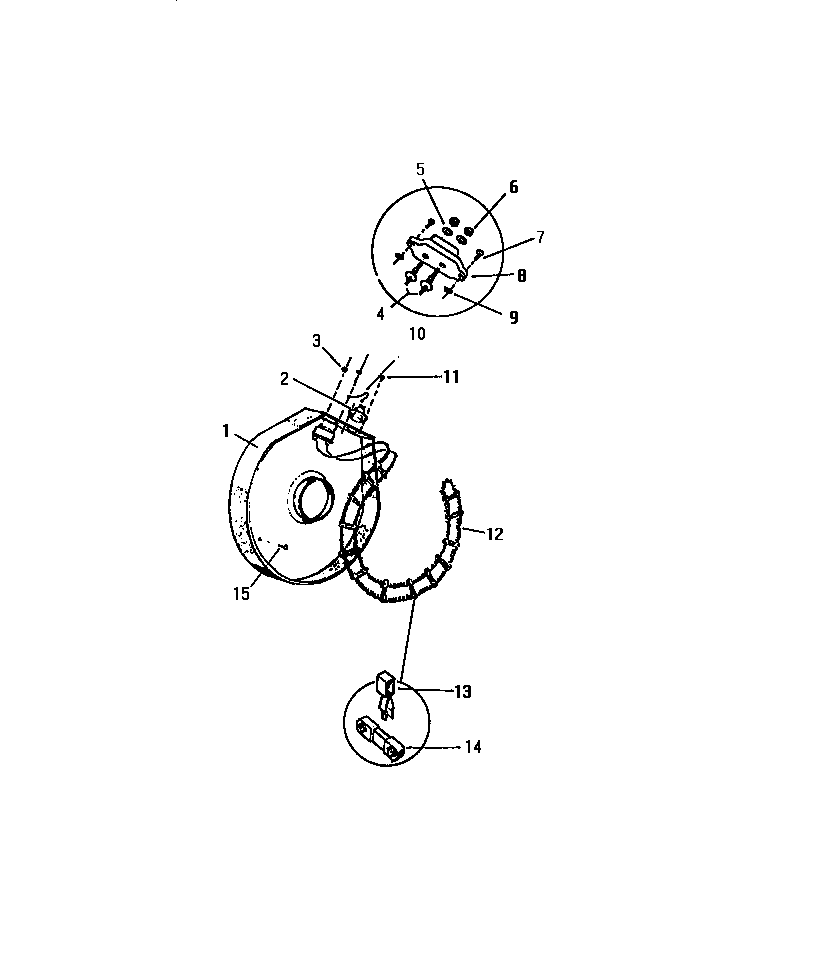

DE500EDD4 05 – HEATER HOUSING

Products

Position	Product
1	HEATER HSG
2	THERMOSTAT HI-LIMIT -4 MODELS
4	WCI Q64572
5	WCI Q440082
6	WCI Q401002
7	WCI Q402706
8	TERMINAL BLOCK -4 MODELS
9	WCI Q500621
10	WIRE CONN. -2-4 MODELS
11	SCREW (4)
12	COIL -4 MODELS
13	SUPPORT CLIP
14	BUSHING 14 REQ.
15	WCI Q505564
