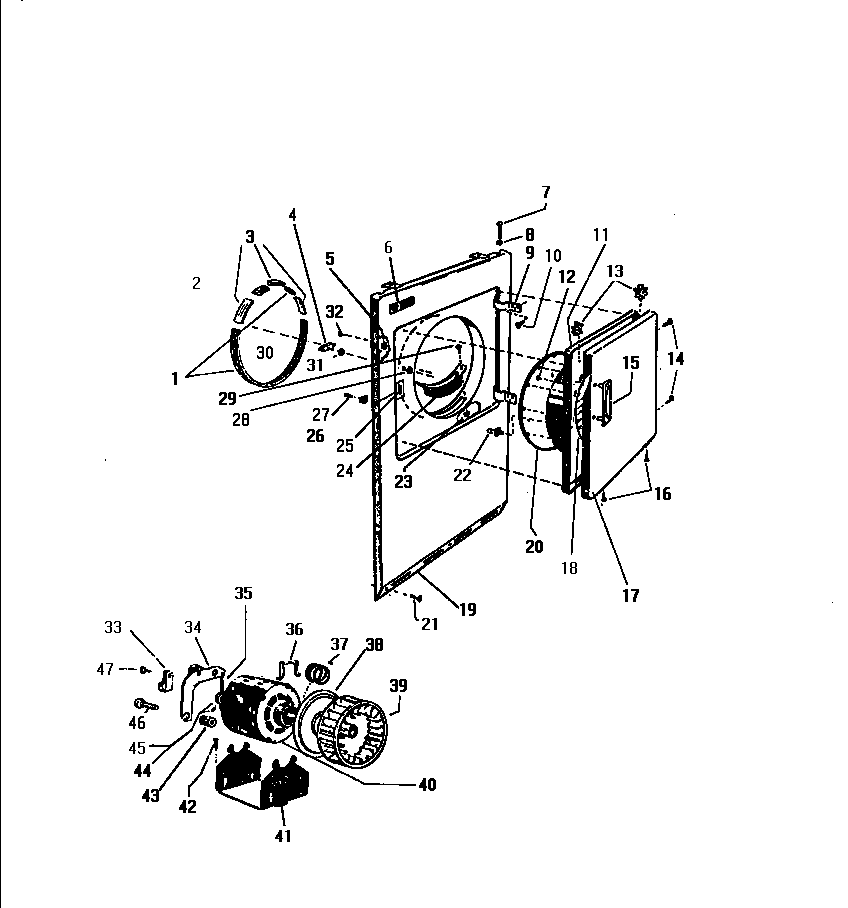

DE500EDF1 03 – CABINET, TOP PANEL, DOOR BASE

Products

Position	Product
1	WCI Q142888
2	WCI Q15141
3	GUIDE KIT
4	START SWITCH
6	WCI Q604442
7	WCI Q55021
8	WCI Q500155
9	WCI Q94651
10	WCI Q500433
11	INNER DOOR PANEL, COFFEE
12	WCI Q503952
13	WCI Q40120
15	WCI Q151326
16	WCI Q411004
17	OUTER DOOR PANEL, COFFEE
18	SHIELD
20	WCI Q167701
21	WCI Q501687
22	WCI Q504552
23	WCI Q500255
24	WCI Q168541
25	WCI Q504551
26	WCI 1466314
27	WCI Q502482
28	WCI Q501450
29	WCI Q405802
30	WCI Q15142
31	WCI Q409004
32	WCI Q505564
33	CLAMP
34	IDLER PULLEY AND BRACKET
35	SPRING
36	WCI Q62206
38	WCI Q94948
39	WCI Q615901
40C	START SWITCH FOR Q616401 GE
40B	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
40E	START SWITCH FOR Q616391 EMER.
40D	START SWITCH FOR Q615921 WW
41	WCI Q94874
42	SCREW
43	WCI Q600179
44	SCREW
45	PULLEY (SEE NOTE 1)
46	WCI Q433401
47	WCI Q414002
