DE500EDV5 02 – CONSOLE & CONTROLS – Aparts

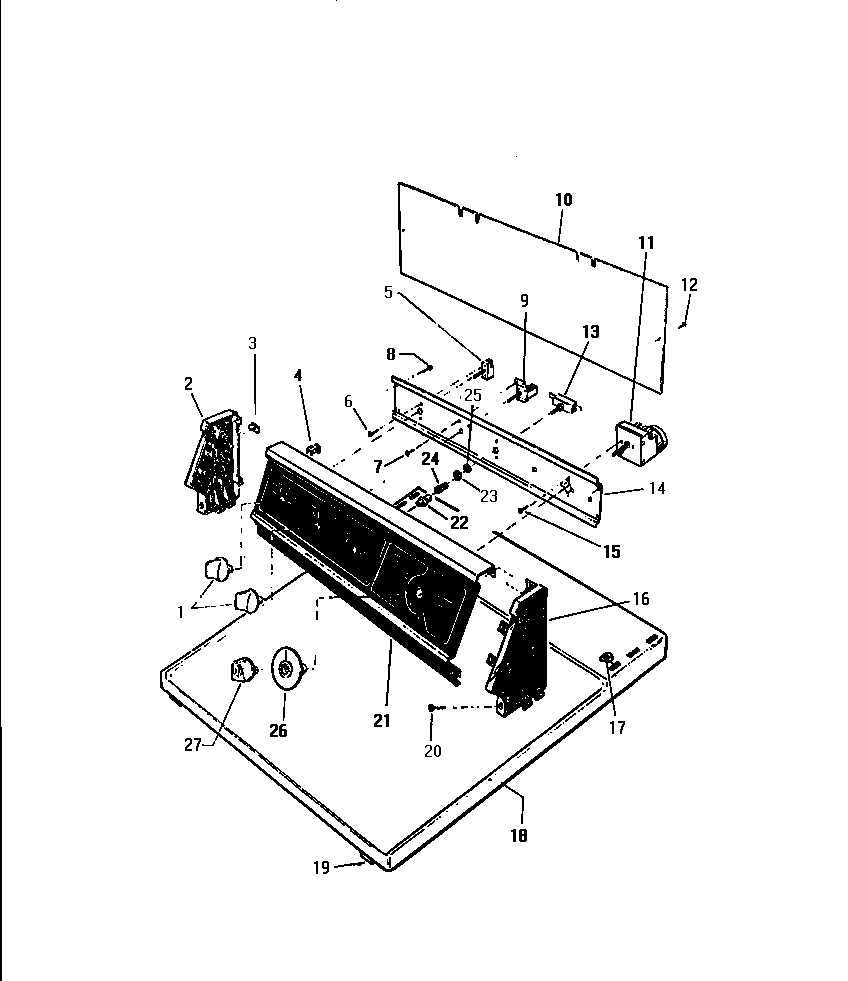

DE500EDV5 02 – CONSOLE & CONTROLS

Products

Position	Product
2	WCI Q616731
3	SPEEDNUT (8)
4A	WCI Q504803
5	WCI Q617633
6	SCREW
8	SCREW (4)
9	WCI Q152913
10	WCI Q616741
11B	WCI Q168608
12	SCREW (4)
13	START SWITCH
14	WCI Q616711
15	SCREW (4)
16	WCI Q616732
17	WCI Q503065
18C	PANEL TOP, FR AV
19	SPRING CATCH
20	WCI Q504533
21	WCI Q616851
22	WCI Q621231
23	WCI Q501450
24	WCI Q66793
25	WCI Q409004
26	WCI Q617641
27	KNOB TIMER
