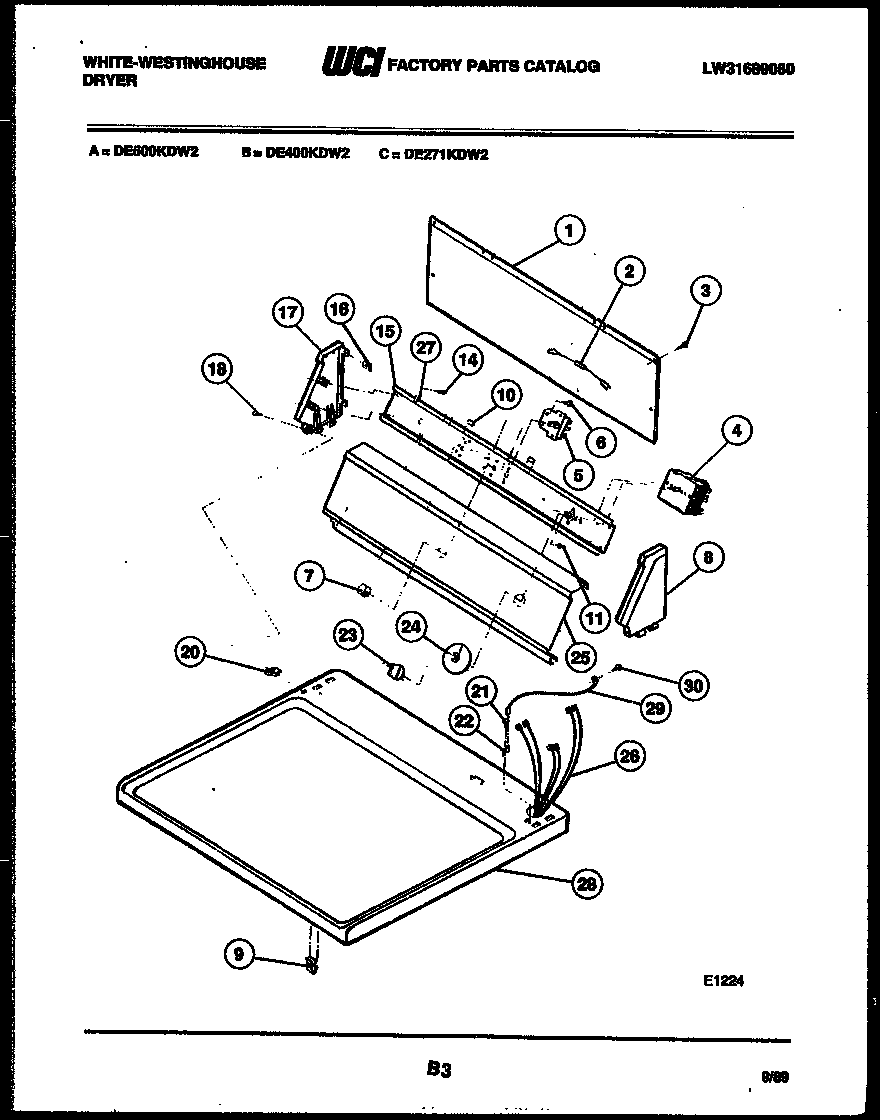

DE500KDD2 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	BACK COVER
2	RESISTOR
3	SCREW
4	WCI Q000634471
5	SWITCH – START
6	WCI 08001544
7	WCI 3201221
8	WCI 3205840
9	3205821 Frigidaire Clip
10	PAD
11	SCREW (2)
14	SCREW (2)
15	WCI 3205841
16	WCI F140666-000
17	WCI 3205842
18	SCREW (2)
20	WCI 3281192
21	131243800 Frigidaire Screw
22	WCI F079171-000
23	KNOB-TIMER
24	WCI 08015434
25	WCI 3206031
26A	5303303590 Frigidaire Dryer 4.0" Cable Tie
26	WCI 3206009
27	CLIP-GROUND
28	PANEL-TOP ALMD
29	WCI 3201308
30	SCREW (2)
