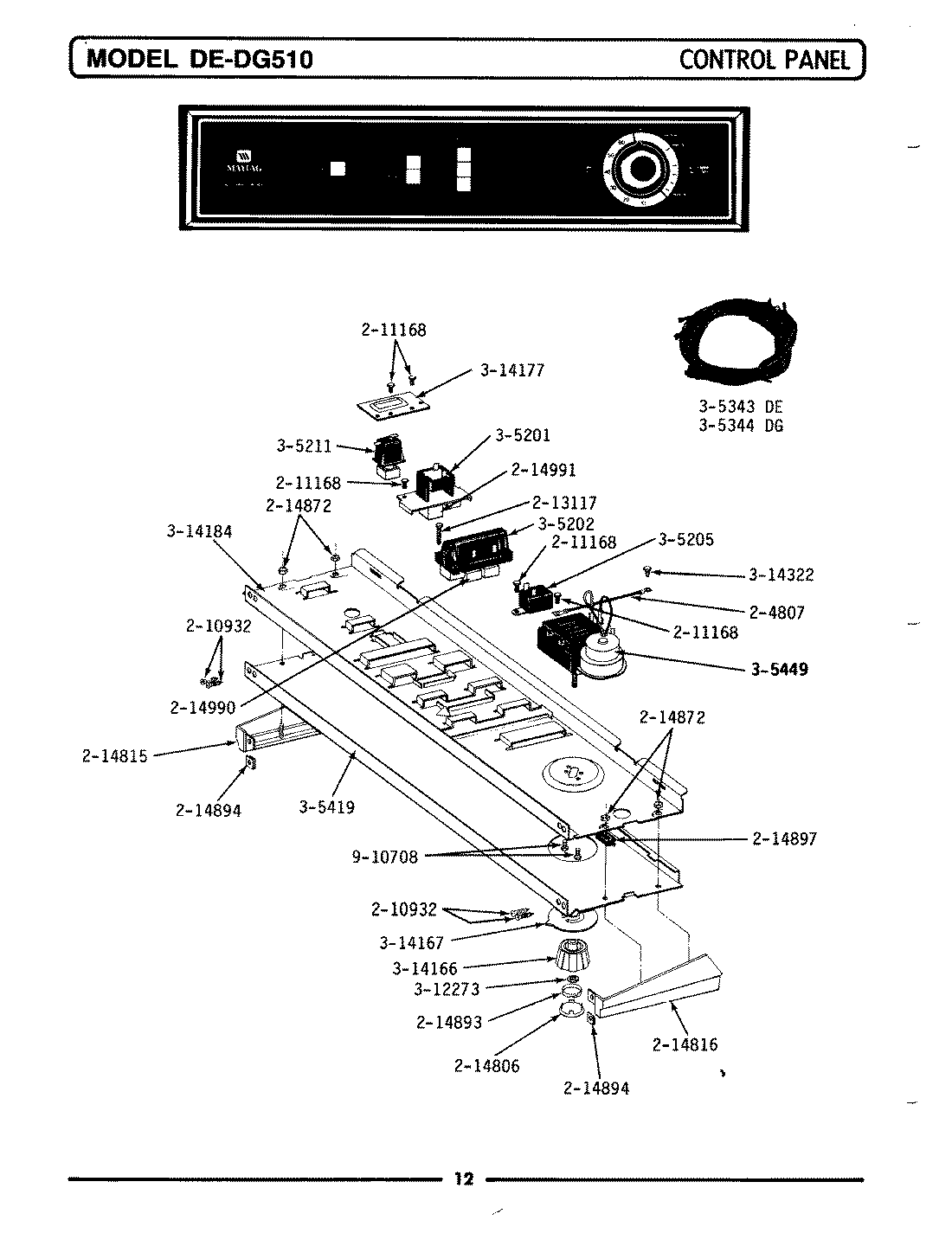

DE510 01 – CONTROL PANEL

Products

Position	Product
1	MAY 204807
2	MAY 210932
3	WPW10139210 Whirlpool Screw
4	WP67006908 Whirlpool Refrigerator Screw
5	MAY 214806
6	MAY 214815
7	MAY 214816
8	MAY 214872
9	MAY 214893
10	MAY 214894
11	MAY 214897
12	MAY 214990
13	MAY 214991
14	MAY 305201
15	MAY 305202
16	WP694419 Whirlpool Buzzer Adjuster
17	MAY 305211
18	TIMER
19	MAY 305343
20	MAY 305344
21	CONTROL PANEL
22	W10155650 Whirlpool Nut
23	MAY Y314166
24	TIMER DIAL INDICATOR
25	BRACKET FOR START SWITCH
26	BACK UP PLATE
27	MAY Y314322
28	MAY 910708
