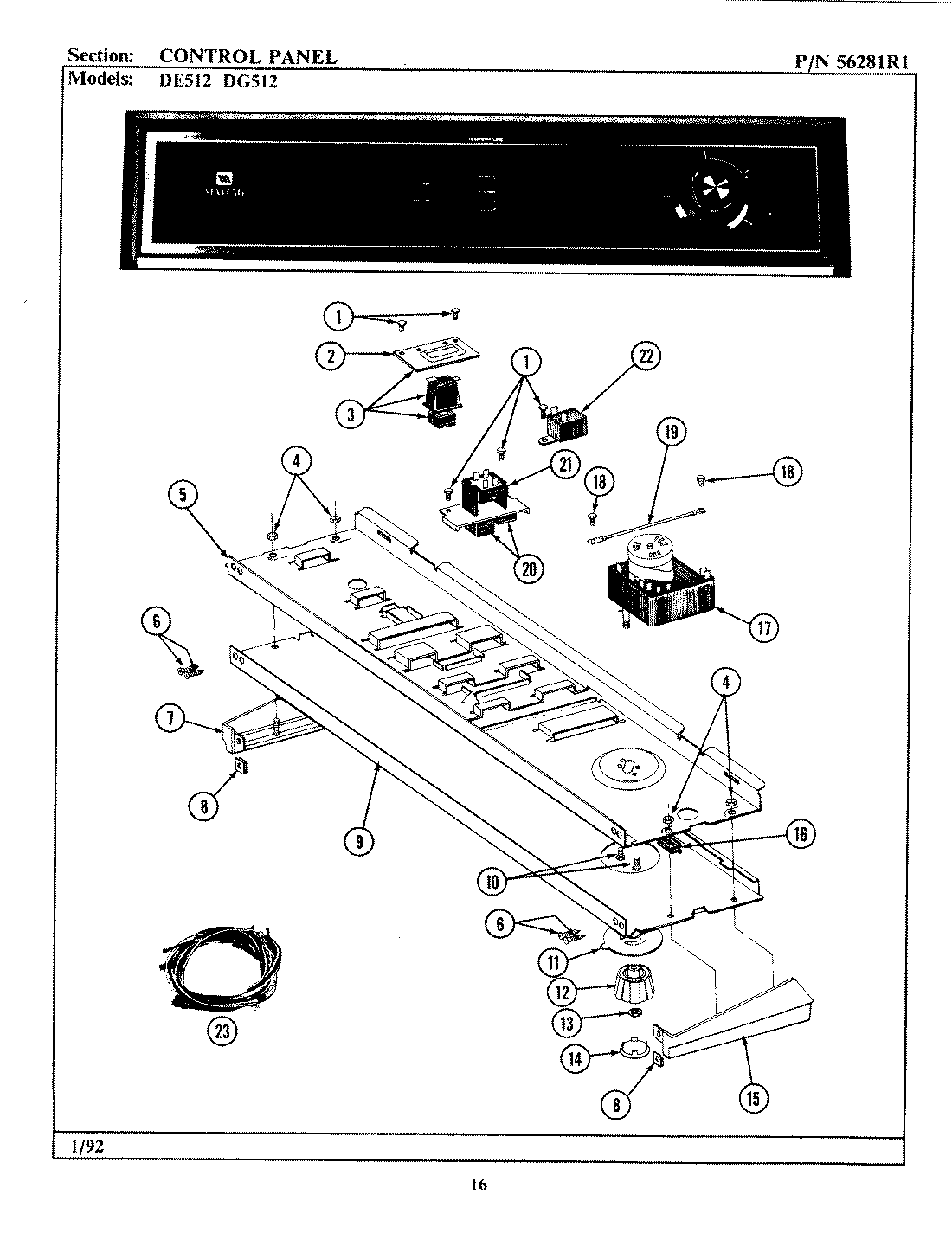

DE512 01 – CONTROL PANEL

Products

Position	Product
1	WPW10139210 Whirlpool Screw
2	BRACKET FOR START SWITCH
3	SWITCH, PUSH/TO/START W/BKT
4	MAY 214872
5	BACK UP PLATE
6	MAY 210932
7	MAY 214815
8	MAY 214894
9	MAY 305884
9	MAY 306384
10	MAY 910708
11	MAY 314422
12	MAY 314421
13	W10155650 Whirlpool Nut
14	MAY 215164
15	MAY 214816
16	MAY 214897
17	WP306040 Whirlpool Timer Assembly
18	WP90767 Whirlpool Screw
19	MAY 204807
20	MAY 215210
21	MAY 305963
22	WP694419 Whirlpool Buzzer Adjuster
23	MAY 305965
23	MAY 305981
23	MAY 306815
23	MAY 306821
