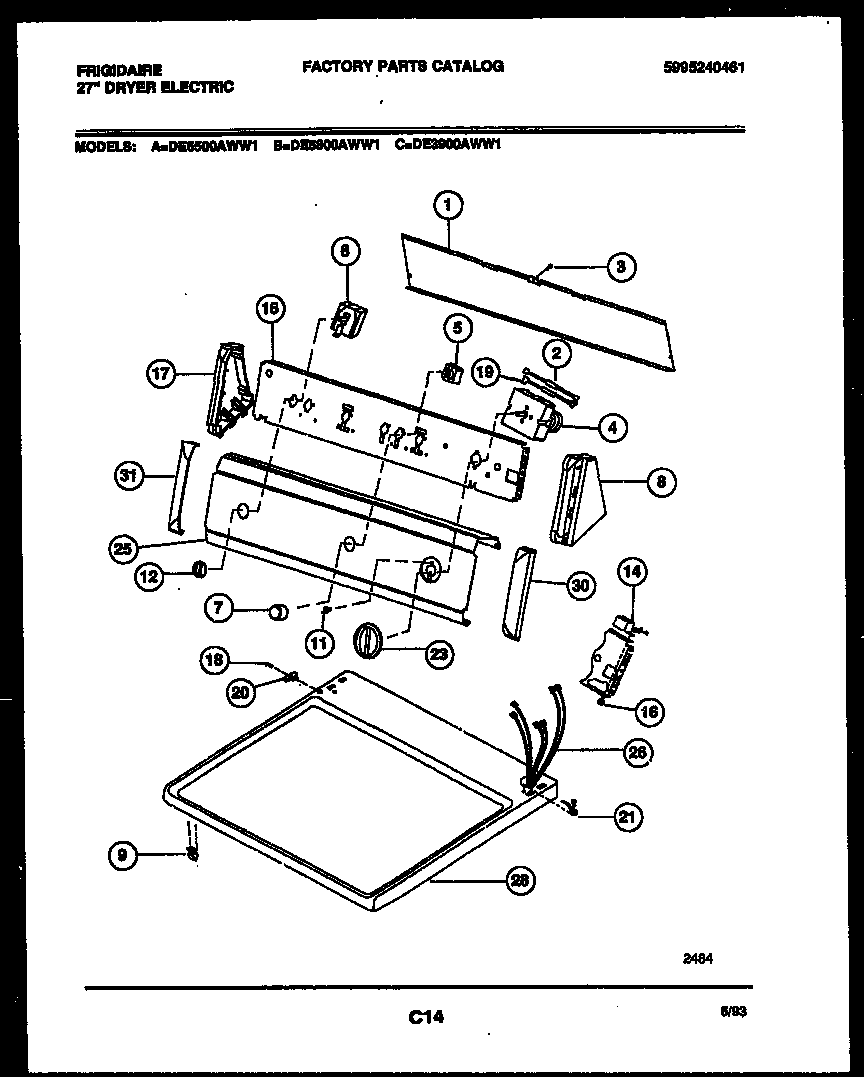

DE5800AWW1 04 – CONSOLE AND CONTROL PARTS

DE5800AWW1 04 – CONSOLE AND CONTROL PARTS

Written by

in

DE5800AWW1 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1BACKSHEET
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
4131062300 Frigidaire Timer
5WCI 131048000
7WCI 131141300
8END CAP-R.H.-WHITE
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
14WCI 5303210285
15BRACKET CONTROLS
165303015671 Frigidaire Bracket Termination Screw
17END CAP-L.H.-WHITE
18WCI 3205820
19RESISTOR, 3.0K
20CLIP
21131243800 Frigidaire Screw
23134011703 Frigidaire Dryer Timer Knob
25WCI 131175700
26WCI 131112300
28PANEL-TOP-WHITE
30COVER-CAP-RH-WHITE
31COVER-CAP-LH-WHITE
